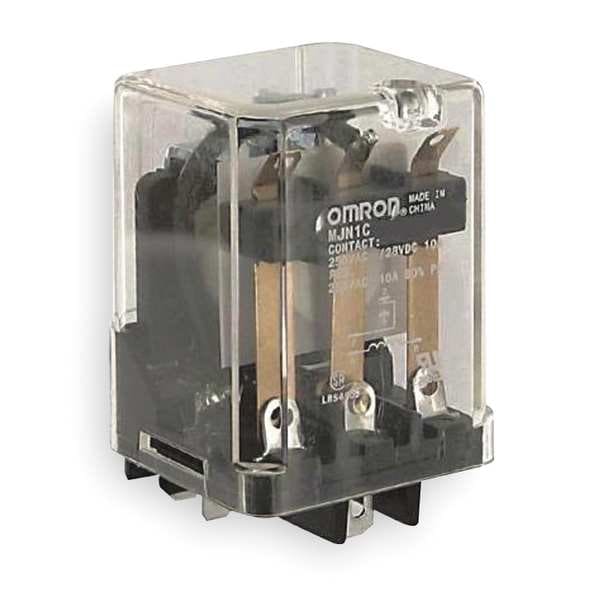

Relé de propósito general, 24V de bobina de corriente continua, cuadrado, 5 pines, SPDT
| Item - Relay | General Purpose Relay |
|---|---|
| Coil Volts | 24V DC |
| AC Contact Rating - Relay | 10A @ 240V |
| DC Contact Rating - Relay | 10 A @ 28 V |
| Base Type - Plug In Relay | Square |
| Number of Pins - Relay | 5 |
| Contact Form - Relay | SPDT |
| Mounting - Relay | Plug In |
| HP @ 120V | 1/3 hp |
| Overall Height - Relay | 2.19 in |
| Pins | 5 |
| Body Height - Relay | 1.91 in |
| Body Depth - Relay | 1.4 in |
| Power Consumption - Relay | 1.2 W |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Contact Rating | 10A @ 240VAC/28VDC |
| Body Width - Relay | 1.53 in |
| Socket | Mfr. No. PTF11PC |
| Standards | CSA Certified, UL Listed |
| Item | General Purpose Relay |
| Socket Code | H |
| Status Indicator | None |
| Push To Test | Manual |
| Contact Material | Silver Alloy |
| Base Type | Square |
| Contact Form | SPDT |
| HP @ 240V | 1/2 hp |
| Horsepower @ 240V AC | 0.5 HP |
| Overall Depth | 2.19 in |
| Contact Rating (DC) | 10 A @ 28 V |
| Input Voltage | 24 V DC |
| Body Depth | 1.91 in |
| Compatible with Manufacturer Model Number | PTF11PC, PTF11QDC, PTF21PC, PTFPCB |
| Motor Rated | Yes |
| Power Consumption | 1.2 W |
| Push-To-Test Method | Manual |
| Flat Pin Width | 0.187 in |
| Insulation Resistance | 1,000 megaohm |
| Sealing | Enclosed |
| Maximum Operating Temperature | 158 deg F |
| Current Rating | 10 A |
| Body Width | 1.4 in |
| Contact Rating (AC) | 10 A @ 240V |
| Coil Resistance | 470 ohms |
| Weight | 2.3 oz |
| Horsepower @ 120V AC | 1/3 hp |
| Dielectric Strength | Greater Than2,500V AC RMS 60 Hz All Other Mutually Insulated Elements, Greater Than750V AC RMS 60 Hz Across Open Contacts |
| Body Height | 1.53 in |
| Electrical Operating Durability | 100,000 |
| Pin Shape | Flat |
| Maximum Switching Voltage | 28 V DC, 600 V AC |
| Base Shape | Square |
| Electrical Connection | Quick-Connect |
| Minimum Operating Temperature | -49 deg F |
| Mechanical Operating Durability | 10,000,000 |
| Number of Pins | 5 |
| Coil Voltage | 24 V DC |
| Series | MJN Series |
| Mounting Style | Plug-In |
| Package Quantity | 1 |
