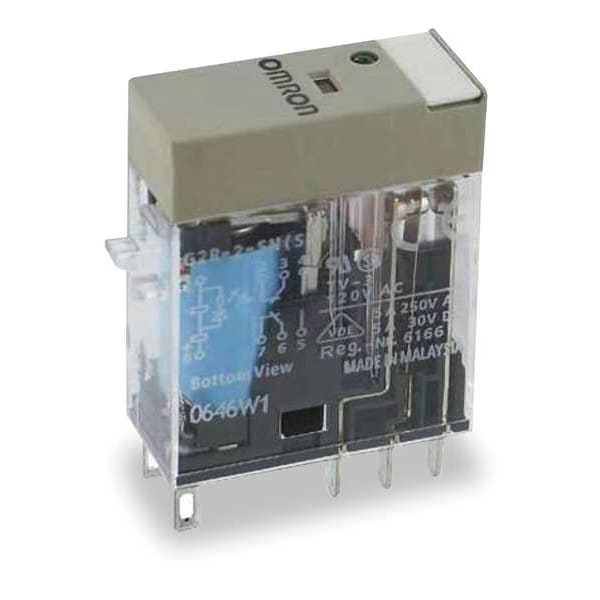

Relé de propósito general, 24V DC de voltaje de bobina, cuadrado, 8 pines, DPDT.
| Item - Relay | General Purpose Relay |
|---|---|
| Coil Volts | 24V DC |
| AC Contact Rating - Relay | 5A @ 240V |
| DC Contact Rating - Relay | 5 A @ 28 V |
| Base Type - Plug In Relay | Square |
| Number of Pins - Relay | 8 |
| Contact Form - Relay | DPDT |
| Mounting - Relay | Plug In |
| HP @ 120V | 1/6 hp |
| Status Indicator | Mechanical Flag, LED Indicator |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Pins | 8 |
| Body Height - Relay | 1.4 in |
| HP @ 240V | 1/3 hp |
| Socket Code | J |
| Body Width - Relay | 0.51 in |
| Standards | CSA Certified, UL Listed, LR, VDE Approved |
| Power Consumption - Relay | 0.5 W |
| Item | General Purpose Relay |
| Base Type | Square |
| Push To Test | Manual |
| Overall Height - Relay | 1.69 in |
| Contact Material | Silver Alloy |
| Body Depth - Relay | 1.14 in |
| Contact Rating | 5A @ 250VAC/30VDC |
| Socket | Mfr. No. P2RF-08-E |
| Contact Form | DPDT |
| Mounting Style | Plug-In |
| Coil Resistance | 1,113 ohms |
| Horsepower @ 120V AC | 1/6 hp |
| Maximum Switching Voltage | 125 V DC, 380 V AC |
| Body Height | 1.14 in |
| Maximum Operating Temperature | 158 deg F |
| Dielectric Strength | 1,000V AC Between Contacts of Same Polarity, 3,000V AC Between Contacts of Different Polarity, 5,000V AC Between Coil and Contacts |
| Resistance Properties | Shock-Resistant, Vibration-Resistant |
| Frequency | 50/60 Hz |
| Sealing | Enclosed |
| Overall Depth | 1.59 in |
| Contact Rating (AC) | 2 A @ 250V, 5 A @ 250V |
| Electrical Connection | Quick-Connect |
| Input Voltage | 24 V DC |
| Minimum Operating Temperature | -40 deg F |
| Flat Pin Width | 0.187 in |
| Body Width | 0.51 in |
| Current Rating | 5 A |
| Response Time | 10 msec |
| Mechanical Operating Durability | 20,000,000 |
| Number of Pins | 8 |
| Compatible with Manufacturer Model Number | P2R-087P, P2R-08A, P2RF-08, P2RF-08-E, P2RF-08-PU, P2RF-08-S, P2RF-08P |
| Electrical Operating Durability | 100,000 |
| Weight | 0.71 oz |
| Pin Shape | Flat |
| Base Shape | Square |
| Horsepower @ 240V AC | 0.3333 HP |
| Power Consumption | 0.5 W |
| Contact Rating (DC) | 3 A @ 30 V, 5 A @ 30 V |
| Coil Voltage | 24 V DC |
| Body Depth | 1.4 in |
| Push-To-Test Method | Manual |
| Motor Rated | Yes |
| Series | G2RS Series |
| Insulation Resistance | 1,000 megaohm |
| Package Quantity | 1 |
