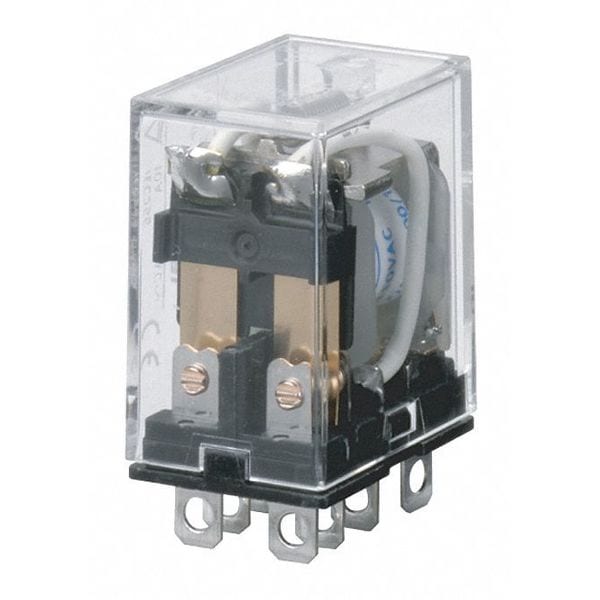

Relé de propósito general, 24V DC de voltaje de bobina, cuadrado, 8 pines, DPDT.
| Item - Relay | General Purpose Relay |
|---|---|
| Item | General Purpose Relay |
| Coil Volts | 24V DC |
| AC Contact Rating - Relay | 10A @ 120V |
| DC Contact Rating - Relay | 10 A @ 24 V |
| Base Type - Plug In Relay | Square |
| Number of Pins - Relay | 8 |
| Contact Form - Relay | DPDT |
| Mounting - Relay | Printed Circuit Board |
| Power Consumption - Relay | 0.9 W |
| HP @ 120V | Not Rated |
| Contact Material | Silver Alloy |
| Body Height - Relay | 1.42 in |
| Body Width - Relay | 0.85 in |
| Body Depth - Relay | 1.1 in |
| Overall Height - Relay | 1.59 in |
| Features | Arc Barrier Equipped, High Dielectric Strength (2000V AC), Long Dependable Service Life Assured By Ag-Alloy Contacts |
| Standards | RoHS Compliant |
| HP @ 240V | Not Rated |
| Status Indicator | None |
| Base Type | Square |
| Push To Test | Manual |
| Pins | 8 |
| Socket | Mfr. No. PTF08A-E |
| Contact Form | DPDT |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Socket Code | PCB-Mount |
| Contact Rating | 10A @ 120VAC/24VDC |
| Body Depth | 1.41 in |
| Mounting Style | Printed Circuit Board |
| Minimum Switching Current | 100 mA |
| Operating Current | 10 A at 110V AC (Resistive Load), 10 A at 24V DC (Resistive Load), 5 A at 24V DC (Inductive Load), 7.5 A at 110V AC (Inductive Load) |
| Electrical Connection | Printed Circuit Board |
| Series | LY Series |
| Power Consumption | 0.53 W |
| Horsepower @ 120V AC | 1/2 hp |
| Insulation Resistance | 100 megaohm |
| Motor Rated | Yes |
| Input Voltage | 24 V DC |
| Sealing | Semi-Sealed |
| Contact Rating (AC) | 10 A @ 120V |
| Weight | 1.41 oz |
| Contact Rating (DC) | 10 A @ 24 V |
| Frequency | 50/60 Hz |
| Coil Voltage | 24 V DC |
| For Use With | General Purpose Relay |
| Overall Depth | 1.67 in |
| Current Rating | 10 A |
| Coil Resistance | 650 ohms |
| Dielectric Strength | 1,000V AC Between Contacts of Same Polarity, 2,000V AC |
| Body Width | 0.85 in |
| Number of Pins | 8 |
| Flat Pin Width | 0.196 in |
| Mounting Hole Diameter | 0.1 in |
| Base Shape | Square |
| Push-To-Test Method | Manual |
| Response Time | 25 msec |
| Body Height | 1.1 in |
| Horsepower @ 240V AC | Not Rated |
| Package Quantity | 1 |
