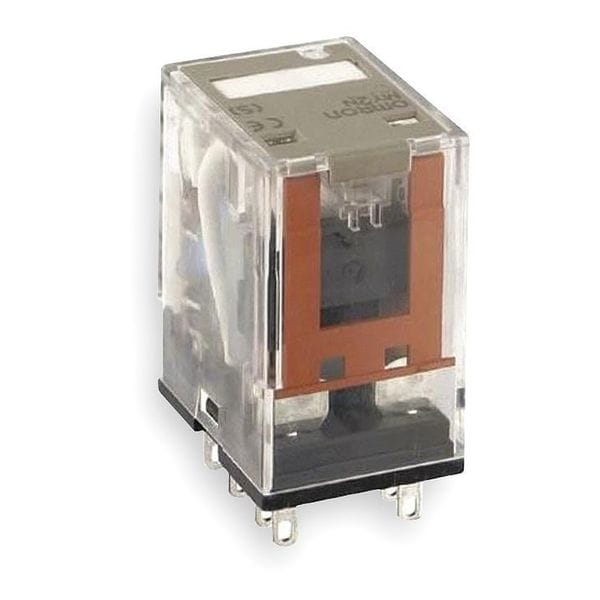

Relé de Propósito General, 24V DC de Voltaje en la Bobina, Cuadrado, 8 Pines, DPDT
| Item - Relay | General Purpose Relay |
|---|---|
| Coil Volts | 24V DC |
| AC Contact Rating - Relay | 10A @ 240V |
| DC Contact Rating - Relay | 10 A @ 28 V |
| Base Type - Plug In Relay | Square |
| Number of Pins - Relay | 8 |
| Contact Form - Relay | DPDT |
| Mounting - Relay | Plug In |
| HP @ 120V | 1/6 hp |
| Body Height - Relay | 1.42 in |
| Item | General Purpose Relay |
| Contact Form | DPDT |
| Status Indicator | LED Indicator |
| Overall Height - Relay | 1.67 in |
| Contact Rating | 10A @ 250VAC/30VDC |
| Base Type | Square |
| Socket Code | K |
| Push To Test | Manual |
| Pins | 8 |
| Power Consumption - Relay | 0.9 W |
| Standards | CE Marked, CSA Certified, SEV, UL Listed, VDE |
| Body Depth - Relay | 1.1 in |
| Body Width - Relay | 0.85 in |
| Contact Material | Silver Nickel |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| HP @ 240V | 1/6 hp |
| Socket | Mfr. No. PYF08A-E |
| Mounting Style | Plug-In |
| Contact Rating (AC) | 2 A @ 240V, 5 A @ 240V |
| Dielectric Strength | 1,000V AC Between Contacts of Same Polarity, 2,000V AC Between Coil and Contact, 2,000V AC Between Contacts of Different Polarity |
| Body Height | 1.1 in |
| Current Rating | 10 A |
| Base Shape | Square |
| Flat Pin Width | 0.102 in |
| Insulation Resistance | 100 megaohm |
| Pin Shape | Flat |
| Mechanical Operating Durability | 100,000,000 |
| Push-To-Test Method | Manual |
| Electrical Operating Durability | 500,000 |
| Motor Rated | Yes |
| Operating Current | 2 A at 220V AC (Inductive Load), 2 A at 24V DC (Inductive Load), 5 A at 220V AC (Resistive Load), 5 A at 24V DC (Resistive Load) |
| Coil Resistance | 662 ohms |
| Electrical Connection | Quick-Connect |
| Weight | 1.23 oz |
| Horsepower @ 120V AC | 1/6 hp |
| Sealing | Enclosed |
| Input Voltage | 24 V DC |
| Maximum Switching Voltage | 125 V DC, 250 V AC |
| Horsepower @ 240V AC | 0.1667 HP |
| Body Depth | 1.42 in |
| Overall Depth | 1.67 in |
| Contact Rating (DC) | 2 A @ 24 V, 5 A @ 24 V |
| Response Time | 20 msec |
| Minimum Operating Temperature | -67 deg F |
| Series | MY Series |
| Maximum Operating Temperature | 140 deg F |
| Coil Voltage | 24 V DC |
| Body Width | 0.85 in |
| Compatible with Manufacturer Model Number | PY08, PY08-02, PY08-Y1, PYF08A-E, PYF08A-N, PYF08S, PYFZ-08-E |
| Resistance Properties | Shock-Resistant, Vibration-Resistant |
| Power Consumption | 0.9 W |
| Number of Pins | 8 |
| Package Quantity | 1 |
