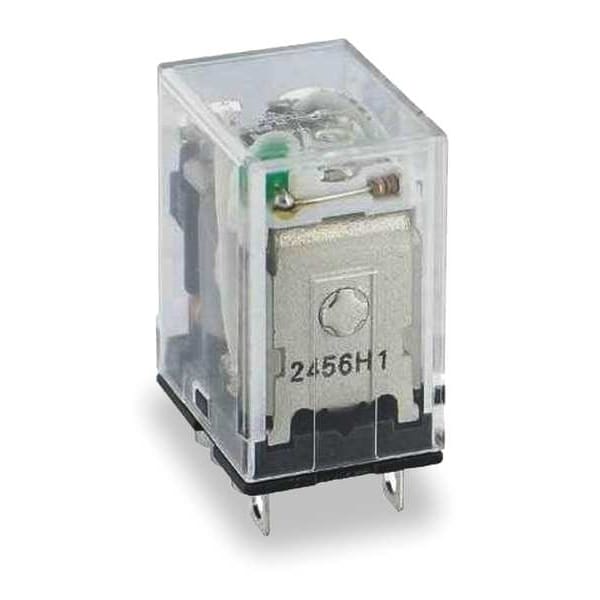

Relé de propósito general, 24V DC de voltaje de bobina, cuadrado, 8 pines, SPDT.
| Item - Relay | General Purpose Relay |
|---|---|
| Coil Volts | 24V DC |
| AC Contact Rating - Relay | 15A @ 120V |
| DC Contact Rating - Relay | 15 A @ 24 V |
| Base Type - Plug In Relay | Square |
| Number of Pins - Relay | 8 |
| Contact Form - Relay | SPDT |
| Mounting - Relay | Plug In |
| HP @ 120V | Not Rated |
| Push To Test | Manual |
| Power Consumption - Relay | 0.9 W |
| Base Type | Square |
| Body Height - Relay | 1.42 in |
| HP @ 240V | Not Rated |
| Overall Height - Relay | 1.67 in |
| Standards | CE Certified, CSA Certified, TUV Certified, UL Listed |
| Pins | 8 |
| Body Depth - Relay | 1.1 in |
| Body Width - Relay | 0.85 in |
| Contact Material | Silver Alloy |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Socket | Mfr. No. PTF08A-E |
| Status Indicator | LED Indicator |
| Item | General Purpose Relay |
| Contact Form | SPDT |
| Contact Rating | 15A @ 110VAC/24VDC |
| Socket Code | J |
| Coil Resistance | 650 ohms |
| Maximum Switching Voltage | 125 V DC, 250 V AC |
| Operating Current | 10 A at 110V AC (Inductive Load), 15 A at 110V AC (Resistive Load), 15 A at 24V DC (Resistive Load), 7 A at 24V DC (Inductive Load) |
| Body Width | 0.85 in |
| Body Height | 1.1 in |
| Power Consumption | 0.53 W |
| Minimum Operating Temperature | -13 deg F |
| Mechanical Operating Durability | 100,000,000 |
| Pin Shape | Flat |
| Dielectric Strength | 1,000V AC Between Contacts of Same Polarity, 2,000V AC between Coil and Contacts |
| Current Rating | 15 A |
| Body Depth | 1.42 in |
| Insulation Resistance | 100 megaohm |
| Sealing | Enclosed |
| Flat Pin Width | 0.197 in |
| Motor Rated | Not Rated - Not Rated |
| Maximum Operating Temperature | 104 deg F |
| Series | LY Series |
| Overall Depth | 1.67 in |
| Electrical Connection | Quick-Connect |
| Electrical Operating Durability | 200,000 |
| Base Shape | Square |
| Contact Rating (AC) | 10 A @ 120V, 15 A @ 120V |
| Resistance Properties | Shock-Resistant, Vibration-Resistant |
| Mounting Style | Plug-In |
| Coil Voltage | 24 V DC |
| Weight | 1.41 oz |
| Push-To-Test Method | Manual |
| Input Voltage | 24 V DC |
| Response Time | 25 msec |
| Horsepower @ 240V AC | Not Rated |
| Horsepower @ 120V AC | Not Rated |
| Compatible with Manufacturer Model Number | PT08, PT08-0, PT08QN, PTF08A, PTF08A-E |
| Number of Pins | 8 |
| Contact Rating (DC) | 15 A @ 24 V, 7 A @ 24 V |
| Package Quantity | 1 |
