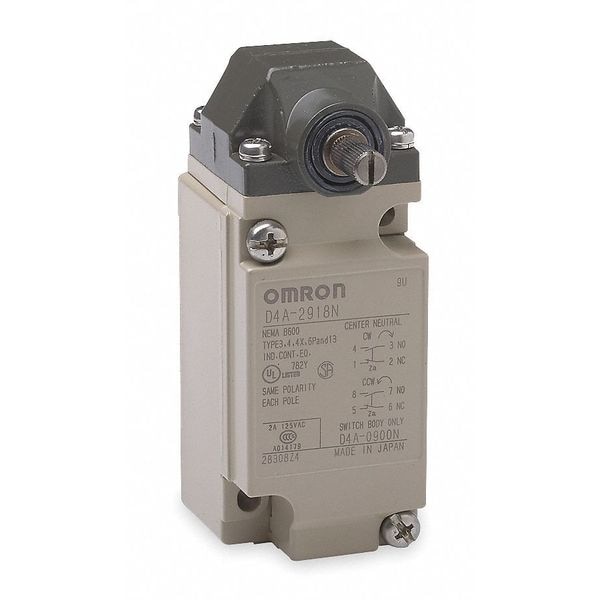

Interruptor de límite de trabajo pesado, sin palanca, rotativo, DPDT, 5A @ 600V CA, Ubicación del actuador: Lateral.
| Item | Heavy Duty Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Rotary |
| Actuator Style - Limit Switch | No Lever, Rotary |
| Contact Form- Switches | DPDT |
| Actuator Location - Limit Switch | Side |
| AC Contact Rating - Limit Switch | 5 A @ 600 V |
| DC Contact Rating - Limit Switch | Not Rated |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| Body Material | Aluminum |
| Body Depth - Limit Switch | 1.73 in |
| Body Style (Limit Switch) | Miniature |
| Actuator Location (Limit Switch) | Side |
| Actuator Style (Limit Switch) | Rotary, No Lever |
| Limit Switch Style | Heavy Duty Limit Switch |
| IP Rating | 67 |
| Operating Force | 0.4 N-m |
| Stem Thread - Limit Switch | No Stem |
| Basic Actuator Style (Limit Switch) | Rotary |
| Operating Temp. Range | -40 to 212 deg F |
| Travel | Total Travel 90 Degrees |
| Series | D4A |
| Width | 1.65 in |
| Contact Form - Limit Switch | DPDT |
| Body Height - Limit Switch | 2.97 in |
| Voltage Rating | 600VAC |
| Actuator Style | Rotary Head, No Lever |
| Height | 4.11 in |
| AC Contact Rating | 5 A @ 600 V |
| Boot Sealed Actuator (Limit Switch) | No |
| Wiring Entry | 1/2 in NPT |
| Standards | CSA, UL |
| Electrical Connection | Screw Terminals |
| DC Contact Rating | Not Rated |
| Boot Sealed Actuator - Limit Switch | No |
| Depth | 2.32" to 2.53" |
| Amps | 5 |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Diagonal) |
| Body Width - Limit Switch | 1.65 in |
| Mounting Hole Spacing - Limit Switch | 2.34 in x 1.16 in |
| Actuator Location | Side |
| Contact Form | DPDT |
| Movement | CCW, CW |
| Number of Poles | 2 |
| NEMA Rating | 12, 13, 3, 4, 4X, 6P |
| Mounting Hole - Limit Switch | (2) 0.20 in dia |
| Arm Material | Not Applicable |
| Roller Width | 0.31 in |
| Differential Travel | 4 Degrees |
| Arm Width | Not Applicable |
| Actuator Length | Not Applicable |
| Body Configuration | Plug-In |
| Number of Mounting Holes | 2 |
| Operating Temperature - Maximum | 212 deg F |
| Resistance Properties | Shock Resistant |
| Mounting Hole Diameter | 0.2 in |
| Manufacturer Warranty Length | 1 yr |
| Roller Adjustability | Fixed |
| NEMA Enclosure Rating | 13, 1, 6P, 12, 3, 2, 4X, 5 |
| Total Travel | 90 Degrees |
| Roller Diameter | 3/4 in |
| Roller Position | Top |
| Includes Actuator | No Actuator Included |
| Hazardous Location Specification | Not Applicable |
| Operating Force - Minimum | Not Applicable |
| Mounting Hole Horizontal Center to Center Distance | 29 mm |
| Arm Length - Minimum | Not Applicable |
| Action | Momentary |
| Body Depth | 1.73 in |
| Directional Movement | CW, CCW |
| Pretravel | 15 Degrees |
| Mounting Style | Surface |
| Arm Adjustability | Adjustable |
| Arm Length - Maximum | Not Applicable |
| Mounting Hole Vertical Center to Center Distance | 59 mm |
| Body Height | 2.97 in |
| Body Width | 1.65 in |
| Operating Force - Maximum | Not Applicable |
| Lamp Type | Not Applicable |
| Operating Temperature - Minimum | -40 deg F |
| Boot Sealed Actuator | Boot Included |
| Overtravel | 65 Degrees |
| Operating Torque - Minimum | Not Applicable |
| Wireless Network Interface | Not Applicable |
| Plunger Adjustability | Fixed |
| Operating Torque - Maximum | 3.54 in-lb |
| Package Quantity | 1 |
