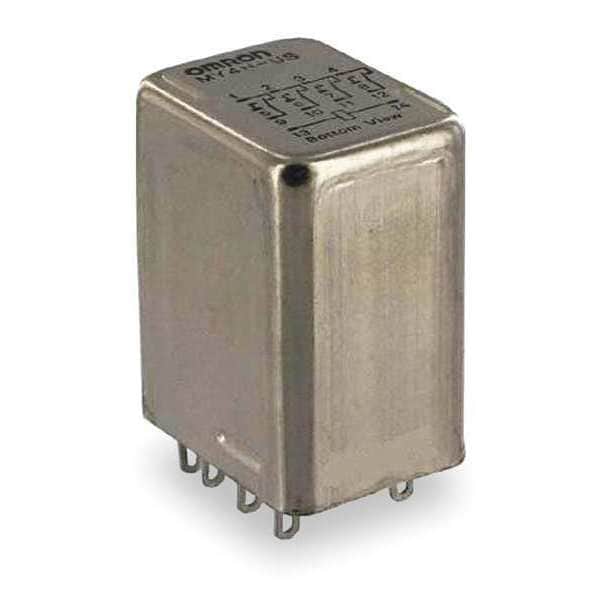

Relé sellado herméticamente, 12V DC de voltaje de bobina, cuadrado, de 14 pines, 4PDT.
| Item - Relay | Hermetically Sealed Relay |
|---|---|
| Coil Volts | 12V DC |
| AC Contact Rating - Relay | 3A @ 120V |
| DC Contact Rating - Relay | 3 A @ 24 V |
| Base Type - Plug In Relay | Square |
| Number of Pins - Relay | 14 |
| Contact Form - Relay | 4PDT |
| Mounting - Relay | Plug In |
| HP @ 120V | 1/6 hp |
| Contact Rating | 3A @ 110VAC/24VDC |
| Pins | 14 |
| Socket Code | G |
| Contact Material | Silver Alloy |
| Body Depth - Relay | 1.12 in |
| Features | Cadmium Free Contacts |
| Power Consumption - Relay | 0.9 W |
| Socket | Mfr. No. PYF14AE |
| Overall Height - Relay | 1.63 in |
| Push To Test | No |
| Standards | CSA Certified, UL Recognized, IMQ, UL Listed, VDE Approved |
| Item | Hermetically Sealed Relay |
| Status Indicator | None |
| Body Height - Relay | 1.38 in |
| Contact Form | 4PDT |
| Body Width - Relay | 0.87 in |
| Base Type | Square |
| HP @ 240V | 1/6 hp |
| Safety Rating | Class 1, Div 2 |
| Current Rating | 3 A |
| Minimum Operating Temperature | -13 deg F |
| Input Voltage | 12 V DC |
| Overall Depth | 1.67 in |
| Flat Pin Width | 0.102 in |
| Contact Rating (AC) | 3 A @ 120V |
| Horsepower @ 120V AC | 1/6 hp |
| Body Width | 0.85 in |
| Coil Voltage | 12 V DC |
| Coil Resistance | 160 ohms |
| Maximum Switching Voltage | 125 V AC, 125 V DC |
| Contact Rating (DC) | 3 A @ 24 V |
| Body Depth | 1.42 in |
| Mounting Style | Plug-In |
| Power Consumption | 0.9 W |
| Maximum Operating Temperature | 140 deg F |
| Base Shape | Square |
| Pin Shape | Flat |
| Weight | 1.23 oz |
| Motor Rated | Yes |
| Number of Pins | 14 |
| Series | MY Series |
| Horsepower @ 240V AC | 0.1667 HP |
| Push-To-Test Method | No Button |
| Body Height | 1.1 in |
| NEC Hazardous Location Classification | Class I, Division 2 |
| Sealing | Enclosed |
| Electrical Connection | Quick-Connect |
| Compatible with Manufacturer Model Number | PYF14A-E-US |
| Package Quantity | 1 |
