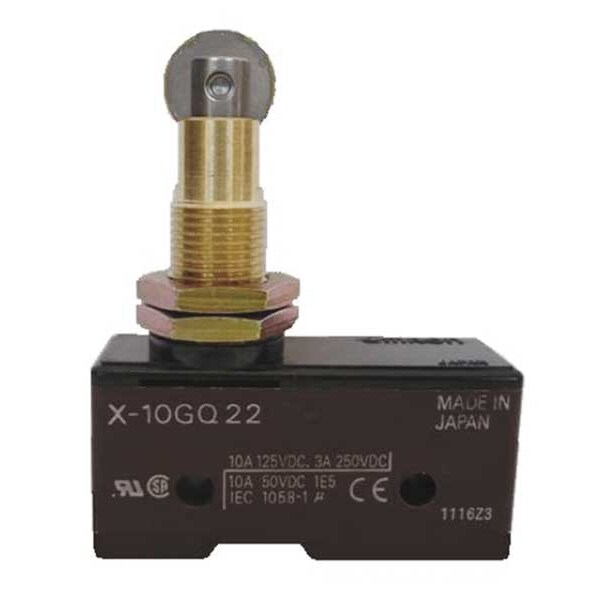

Interruptor de acción rápida industrial, con rodillos cruzados, montaje en panel, actuador de émbolo, SPDT.
| Item | Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Plunger, Roller, Panel Mount |
| DC Contact Rating - Snap Action Switch | 10 A @ 120 V |
| Contact Form- Switches | SPDT |
| Lever Actuator Length - Snap Action Switch | Not Applicable |
| Height - Snap Action Switch | 0.89 in |
| Width - Snap Action Switch | 1.94 in |
| Depth - Snap Action Switch | 0.69 in |
| Actuator Length | 1.35 in |
| Type of Actuator | Panel Mount Cross Roller Plunger |
| Contact Form | 1NO/1NC |
| Over Travel | 0.14 in |
| Watertight - Snap Action Switch | No |
| Standards | CE, CSA, RU |
| Mounting Dimension - Snap Action Switch | 1 in (Centers) |
| Height | 0.89 in |
| Housing Material | Phenolic |
| Max. Pretravel | 0.035 in |
| Length | 1.94 in |
| Terminal Type | Solder |
| Voltage Rating | 125VDC |
| Mounting Dimension | 1.00" Centers |
| Differential Travel | 0.007 in |
| Operating Temp. Range | -13 Degrees to 176 Degrees F |
| Release Force | 4.03 ozf |
| Depth | 0.69 in |
| Series | X |
| Electrical Connection - Snap Action Switch | Solder Lug |
| Current Rating | 10 A |
| Operating Force | 18 oz |
| Includes | Threaded Neck with Nuts |
| DC Contact Rating | 10 A @ 120 V |
| AC Contact Rating | 2 A @ 250 V |
| Electrical Connection | Solder |
| Overall Depth | 2.24 in |
| Pretravel | 0.217 in |
| Overall Height | 0.77 in |
| Lever Actuator Length | Not Applicable |
| Differential Travel - Maximum | 0.0071 in |
| Differential Travel - Minimum | Not Applicable |
| Roller Adjustability | Fixed |
| Body Width | 1.94 in |
| Operating Force - Minimum | 5 N |
| Roller Position | Offset |
| Roller Material | Stainless Steel |
| Body Height | 0.77 in |
| Operating Temperature - Maximum | 176 deg F |
| Overall Width | 1.94 in |
| Mounting Hole Diameter | 3/16 in |
| Actuator Style | Plunger |
| Body Depth | 2.24 in |
| Body Material | Phenolic |
| Overtravel | 0.005 in |
| Operating Temperature - Minimum | -13 deg F |
| Operating Force - Maximum | 5 N |
| Roller Diameter | 1/2 in |
| Roller Width | 0.19 in |
| Center Mounting Hole Distance | 1 in |
| Package Quantity | 1 |
