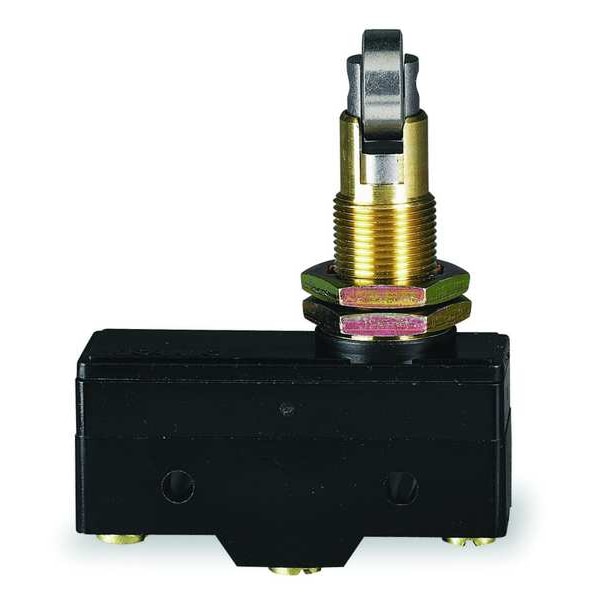

Interruptor de acción rápida industrial, tipo Cross Roller, montaje en panel, actuador de émbolo, SPDT.
| Item | Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Plunger, Roller, Panel Mount |
| AC Contact Rating - Snap Action Switch | 15 A @ 480 V |
| DC Contact Rating - Snap Action Switch | 15 A @ 14 V |
| Contact Form- Switches | SPDT |
| Lever Actuator Length - Snap Action Switch | Not Applicable |
| Watertight - Snap Action Switch | No |
| Type of Actuator | Panel Mount Cross Roller Plunger |
| Actuator Length | Not Applicable |
| Max. Pretravel | 0.016 in |
| Differential Travel | 0.002 in |
| Over Travel | 0.141 in |
| Release Force | 4.03 ozf |
| Operating Force | 8.8 to 12.3 oz |
| Voltage Rating | 480VAC |
| Contact Form | 1NO/1NC |
| Series | Z |
| Operating Temp. Range | -25 Degrees to 80 Degrees C |
| Mounting Dimension | 1.03" Centers |
| Electrical Connection - Snap Action Switch | Screw |
| Housing Material | Phenolic |
| Terminal Type | Screw |
| Current Rating | 15a |
| Mounting Dimension - Snap Action Switch | 1.03 in (Centers) |
| Standards | CSA, UL Listed |
| AC Contact Rating | 15 A @ 250 V |
| DC Contact Rating | 15 A @ 14 V |
| Overtravel | 0.141 in |
| Overall Height | 0.69 in |
| Roller Diameter | 1/2 in |
| Operating Temperature - Maximum | 176 deg F |
| Electrical Connection | Screw |
| Center Mounting Hole Distance | 1 in |
| Differential Travel - Maximum | 0.002 in |
| Lever Actuator Length | Not Applicable |
| Operating Temperature - Minimum | -13 deg F |
| Operating Force - Maximum | 3.43 N |
| Actuator Style | Plunger |
| Roller Position | Inside Offset |
| Body Material | Phenolic |
| Differential Travel - Minimum | Not Applicable |
| Pretravel | 0.016 in |
| Body Width | 1.94 in |
| Operating Force - Minimum | 2.45 N |
| Body Height | 0.69 in |
| Roller Adjustability | Fixed |
| Mounting Hole Diameter | 3/16 in |
| Overall Width | 1.94 in |
| Roller Material | Stainless Steel |
| Roller Width | 0.16 in |
| Package Quantity | 1 |
