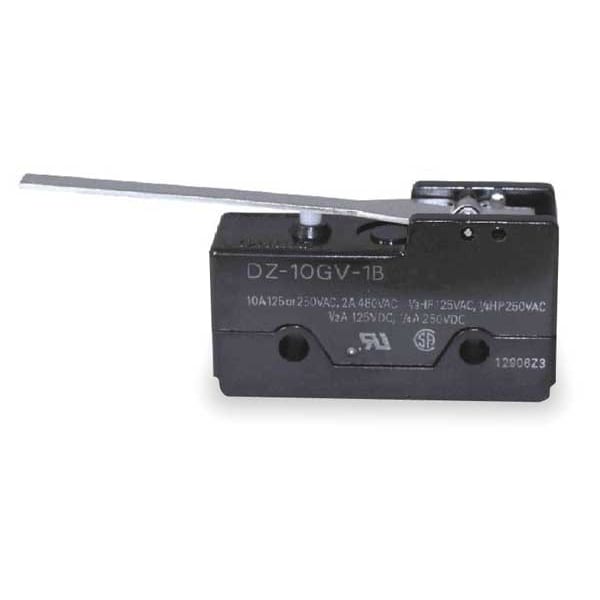

Interruptor de acción rápida industrial, bisagra, actuador de palanca, DPDT, clasificación de contacto de 10A @ 240V CA.
| Item | Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Lever, Hinge |
| AC Contact Rating - Snap Action Switch | 10 A @ 240 V |
| DC Contact Rating - Snap Action Switch | 10 A @ 30 V |
| Contact Form- Switches | DPDT |
| Lever Actuator Length - Snap Action Switch | 1.94 in |
| Height - Snap Action Switch | 1.1 in |
| Width - Snap Action Switch | 1.94 in |
| Depth - Snap Action Switch | 0.69 in |
| Voltage Rating | 480VAC |
| Terminal Type | Screw |
| Over Travel | 0.016 in |
| Housing Material | Phenolic |
| Depth | 0.69 in |
| Series | DZ |
| Differential Travel | 0.066 in |
| Type of Actuator | Hinge Lever |
| Actuator Length | 1.94 in |
| Release Force | 0.47 ozf |
| Contact Form | 3NO/3NC |
| Electrical Connection - Snap Action Switch | Screw |
| Length | 1.94 in |
| Height | 1.1 in |
| Mounting Dimension | 1.00" Centers |
| Watertight - Snap Action Switch | No |
| Operating Temp. Range | -25 Degrees to 80 Degrees C |
| Standards | CSA, RU |
| Mounting Dimension - Snap Action Switch | 1 in (Centers) |
| Current Rating | 10 A |
| Operating Force | 7.1 oz |
| Max. Pretravel | 0.236 in |
| DC Contact Rating | 0.25 A @ 250 V, 0.5 A @ 125 V |
| AC Contact Rating | 2 A @ 480 V |
| Body Height | 0.69 in |
| Overtravel | 0.016 in |
| Pretravel | 0.236 in |
| Differential Travel - Minimum | Not Applicable |
| Body Material | Phenolic |
| Operating Force - Maximum | 1.96 N |
| Operating Force - Minimum | 1.96 N |
| Actuator Style | Hinge Lever |
| Body Width | 3.01 in |
| Operating Temperature - Minimum | -13 deg F |
| Overall Width | 3.01 in |
| Roller Material | Not Applicable |
| Body Depth | 1.28 in |
| Roller Position | Not Applicable |
| Electrical Connection | Screw |
| Mounting Hole Diameter | 3/16 in |
| Overall Depth | 1.28 in |
| Roller Width | Not Applicable |
| Center Mounting Hole Distance | 1 in |
| Overall Height | 0.69 in |
| Roller Diameter | Not Applicable |
| Lever Actuator Length | 1.94 in |
| Roller Adjustability | Not Applicable |
| Differential Travel - Maximum | 0.0669 in |
| Operating Temperature - Maximum | 176 deg F |
| Package Quantity | 1 |
