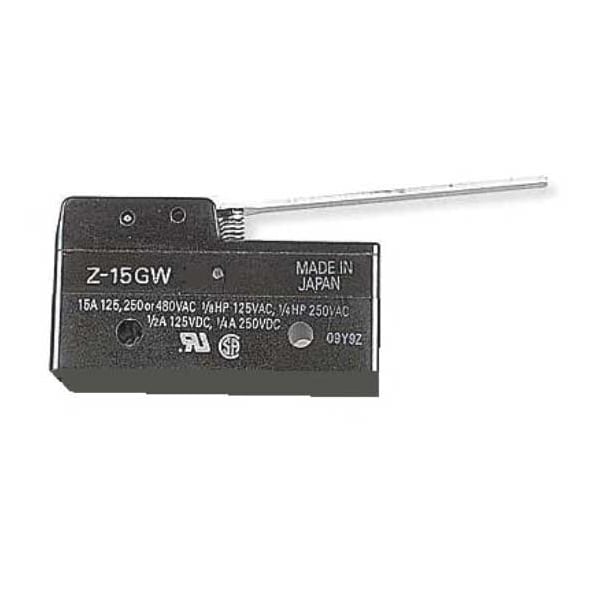

Interruptor de acción rápida industrial, bisagra, actuador de palanca, SPDT, clasificación de contacto de 15A @ 480V CA
| Item | Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Lever, Hinge |
| AC Contact Rating - Snap Action Switch | 15 A @ 480 V |
| DC Contact Rating - Snap Action Switch | 15 A @ 14 V |
| Contact Form- Switches | SPDT |
| Lever Actuator Length - Snap Action Switch | 2-1/2 in |
| Height - Snap Action Switch | 1.05 in |
| Width - Snap Action Switch | 1.94 in |
| Depth - Snap Action Switch | 0.69 in |
| Differential Travel | 0.05 in |
| Mounting Dimension - Snap Action Switch | 1 in (Centers) |
| Current Rating | 15a |
| Release Force | 0.5 ozf |
| Over Travel | 0.221 in |
| Electrical Connection - Snap Action Switch | Solder Lug |
| Standards | CSA, UL Listed |
| Max. Pretravel | 10 mm |
| Housing Material | Phenolic |
| Operating Force | 2.47 oz |
| Depth | 0.69 in |
| Height | 1.05 in |
| Operating Temp. Range | -13 Degrees to 176 Degrees F |
| Watertight - Snap Action Switch | No |
| Actuator Length | 2-1/2 in |
| Voltage Rating | 125/250VAC |
| Length | 1.94 in |
| Terminal Type | Solder |
| Type of Actuator | Hinge Lever |
| Contact Form | 1NO/1NC |
| Mounting Dimension | 1.00" Centers |
| Series | Z |
| AC Contact Rating | 15 A @ 250 V |
| DC Contact Rating | 15 A @ 14 V |
| Overtravel | 0.22 in |
| Differential Travel - Minimum | Not Applicable |
| Roller Width | Not Applicable |
| Roller Material | Not Applicable |
| Overall Height | 0.69 in |
| Actuator Style | Hinge Lever |
| Roller Adjustability | Fixed |
| Electrical Connection | Solder |
| Pretravel | 0.394 in |
| Body Width | 1.94 in |
| Roller Diameter | Not Applicable |
| Body Height | 0.69 in |
| Operating Temperature - Maximum | 176 deg F |
| Body Material | Phenolic |
| Operating Force - Minimum | 0.69 N |
| Operating Temperature - Minimum | -13 deg F |
| Differential Travel - Maximum | 0.0512 in |
| Body Depth | 0.69 in |
| Overall Width | 1.94 in |
| Roller Position | Not Applicable |
| Mounting Hole Diameter | 3/16 in |
| Center Mounting Hole Distance | 1 in |
| Operating Force - Maximum | 0.69 N |
| Lever Actuator Length | 2-1/2 in |
| Overall Depth | 0.69 in |
| Package Quantity | 1 |
