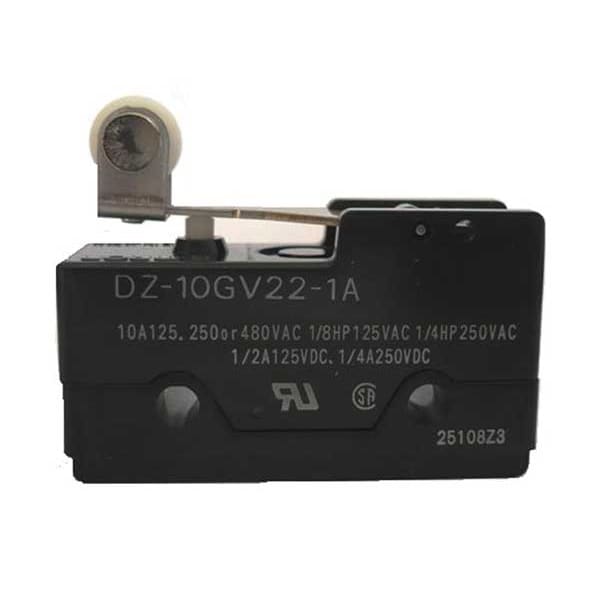

Interruptor de acción rápida industrial, rodillo de bisagra, actuador de palanca, DPDT, capacidad de contacto de 10A @ 240V AC.
| Item | Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Lever, Hinge Roller |
| AC Contact Rating - Snap Action Switch | 10 A @ 240 V |
| DC Contact Rating - Snap Action Switch | 10 A @ 30 V |
| Contact Form- Switches | DPDT |
| Lever Actuator Length - Snap Action Switch | 1.19 in |
| Height - Snap Action Switch | 1.1 in |
| Width - Snap Action Switch | 1.94 in |
| Depth - Snap Action Switch | 0.69 in |
| Terminal Type | Solder |
| Series | DZ |
| Operating Force | 15.18 oz |
| Length | 1.94 in |
| Operating Temp. Range | -13 Degrees to 176 Degrees F |
| Voltage Rating | 125/250VAC |
| Depth | 0.69 in |
| Mounting Dimension | 1.00" Centers |
| Release Force | 1.47 ozf |
| Electrical Connection - Snap Action Switch | Solder Lug |
| Watertight - Snap Action Switch | No |
| Standards | CSA, RU |
| Actuator Length | 1.19 in |
| Current Rating | 10 A |
| Contact Form | 3NO/3NC |
| Over Travel | 0.005 in |
| Differential Travel | 0.024 in |
| Type of Actuator | Hinge Roller Lever |
| Max. Pretravel | 0.118 in |
| Mounting Dimension - Snap Action Switch | 1 in (Centers) |
| Housing Material | Phenolic |
| Height | 1.1 in |
| AC Contact Rating | 2 A @ 480 V |
| DC Contact Rating | 0.25 A @ 250 V, 0.5 A @ 125 V |
| Mounting Hole Diameter | 3/16 in |
| Operating Force - Maximum | 4.22 N |
| Overall Depth | 1.6 in |
| Body Width | 1.94 in |
| Body Depth | 1.6 in |
| Pretravel | 0.118 in |
| Operating Temperature - Maximum | 176 deg F |
| Actuator Style | Hinge Roller Lever |
| Lever Actuator Length | 1.19 in |
| Roller Position | Inside Offset |
| Body Height | 0.69 in |
| Roller Material | Plastic |
| Overtravel | 0.005 in |
| Operating Temperature - Minimum | -13 deg F |
| Roller Diameter | 0.37 in |
| Differential Travel - Maximum | 0.0236 in |
| Overall Width | 1.94 in |
| Differential Travel - Minimum | Not Applicable |
| Body Material | Phenolic |
| Electrical Connection | Solder |
| Operating Force - Minimum | 4.22 N |
| Center Mounting Hole Distance | 1 in |
| Roller Width | 0.16 in |
| Roller Adjustability | Fixed |
| Overall Height | 0.69 in |
| Package Quantity | 1 |
