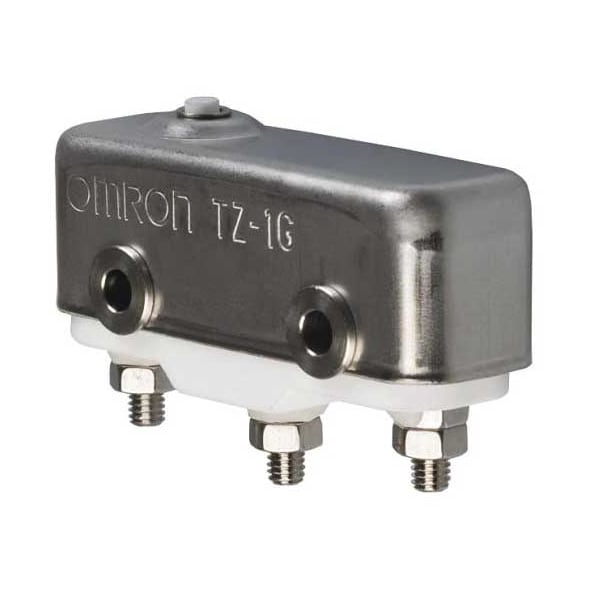

Interruptor de acción rápida industrial, con pasador, actuador de émbolo, SPDT, capacidad de contacto de 1A a 240V CA.
| Item | Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Plunger, Pin |
| AC Contact Rating - Snap Action Switch | 1 A @ 240 V |
| DC Contact Rating - Snap Action Switch | 1 A @ 30 V |
| Contact Form- Switches | SPDT |
| Lever Actuator Length - Snap Action Switch | Not Applicable |
| Housing Material | Phenolic |
| Watertight - Snap Action Switch | No |
| Operating Temp. Range | -85 Degrees to 752 Degrees F |
| Differential Travel | 0.006 in |
| Contact Form | 1NO/1NC |
| Over Travel | 0.005 in |
| Operating Force | 17.65 oz |
| Mounting Dimension - Snap Action Switch | 1 in (Centers) |
| Series | TZ |
| Terminal Type | Bolt |
| Actuator Length | 1.94 in |
| Voltage Rating | 125/250VAC |
| Mounting Dimension | 1.00" Centers |
| Max. Pretravel | 0.016 in |
| Current Rating | 1 A |
| Electrical Connection - Snap Action Switch | Bolt |
| Release Force | 4.03 ozf |
| Type of Actuator | Pin Plunger |
| AC Contact Rating | 1 A @ 240 V |
| DC Contact Rating | 1 A @ 30 V |
| Overtravel | 0.005 in |
| Electrical Connection | Screw |
| Overall Width | 1.94 in |
| Body Height | 0.69 in |
| Overall Height | 0.69 in |
| Roller Position | Not Applicable |
| Lever Actuator Length | Not Applicable |
| Mounting Hole Diameter | 1/8 in |
| Operating Force - Minimum | 4.9 N |
| Roller Material | Not Applicable |
| Operating Force - Maximum | 4.9 N |
| Actuator Style | Plunger |
| Roller Width | Not Applicable |
| Pretravel | 0.016 in |
| Differential Travel - Maximum | 0.0059 in |
| Body Width | 1.94 in |
| Body Material | Phenolic |
| Roller Diameter | Not Applicable |
| Differential Travel - Minimum | Not Applicable |
| Roller Adjustability | Not Applicable |
| Center Mounting Hole Distance | 1 in |
| Operating Temperature - Maximum | 752 deg F |
| Operating Temperature - Minimum | -85 deg F |
| Package Quantity | 1 |
