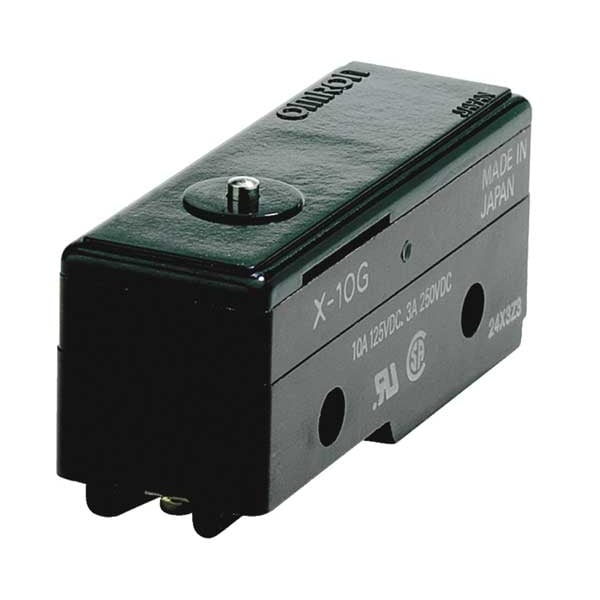

Interruptor de acción rápida industrial, pasador, actuador de émbolo, SPDT
| Item | Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Plunger, Pin |
| DC Contact Rating - Snap Action Switch | 10 A @ 120 V |
| Contact Form- Switches | SPDT |
| Lever Actuator Length - Snap Action Switch | Not Applicable |
| Height - Snap Action Switch | 0.84 in |
| Housing Material | Phenolic |
| Over Travel | 0.01 in |
| Electrical Connection - Snap Action Switch | Solder Lug |
| Max. Pretravel | 0.035 in |
| Mounting Dimension | 1.00" Centers |
| Mounting Dimension - Snap Action Switch | 1 in (Centers) |
| Contact Form | 1NO/1NC |
| Height | 0.84 |
| Voltage Rating | 125VDC |
| Series | X |
| Type of Actuator | Pin Plunger |
| Operating Temp. Range | -13 Degrees to 176 Degrees F |
| Current Rating | 10 A |
| Operating Force | 18 oz |
| Differential Travel | 0.007 in |
| Release Force | 4.03 ozf |
| Terminal Type | Solder |
| Actuator Length | Not Applicable |
| Watertight - Snap Action Switch | No |
| Includes | Stainless-Steel Actuator |
| Standards | CE, CSA, RU |
| AC Contact Rating | 2 A @ 250 V |
| DC Contact Rating | 10 A @ 120 V |
| Differential Travel - Minimum | Not Applicable |
| Roller Material | Not Applicable |
| Body Depth | 0.91 in |
| Differential Travel - Maximum | 0.0071 in |
| Operating Force - Minimum | 5 N |
| Center Mounting Hole Distance | 1 in |
| Operating Temperature - Minimum | -13 deg F |
| Electrical Connection | Solder |
| Actuator Style | Plunger |
| Body Height | 0.69 in |
| Mounting Hole Diameter | 3/16 in |
| Operating Temperature - Maximum | 176 deg F |
| Lever Actuator Length | Not Applicable |
| Body Width | 1.94 in |
| Overall Depth | 0.91 in |
| Roller Adjustability | Fixed |
| Body Material | Phenolic |
| Overtravel | 0.005 in |
| Roller Position | Not Applicable |
| Roller Width | Not Applicable |
| Overall Width | 1.94 in |
| Overall Height | 0.69 in |
| Pretravel | 0.035 in |
| Roller Diameter | Not Applicable |
| Operating Force - Maximum | 5 N |
| Package Quantity | 1 |
