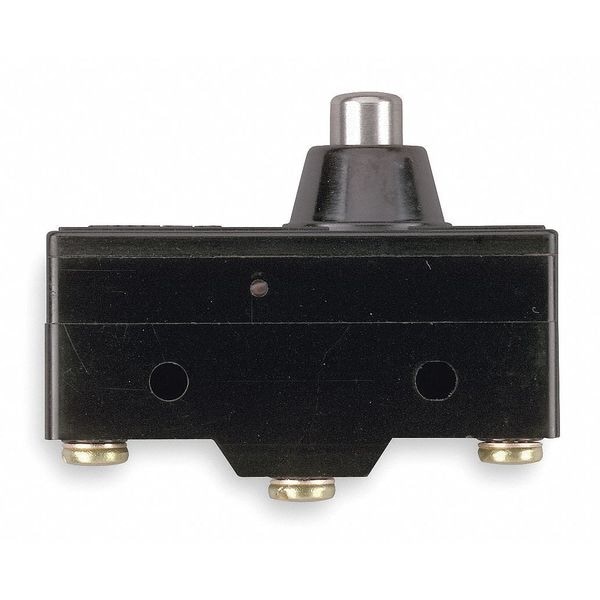

Interruptor de acción rápida industrial, eje embolo, actuador corto, SPDT, clasificación de contacto de 20A @ 480V CA
| Item | Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Plunger, Short |
| AC Contact Rating - Snap Action Switch | 20 A @ 480 V |
| DC Contact Rating - Snap Action Switch | 20 A @ 14 V |
| Contact Form- Switches | SPDT |
| Lever Actuator Length - Snap Action Switch | Not Applicable |
| Housing Material | Phenolic |
| Mounting Dimension - Snap Action Switch | 1 in (Centers) |
| Electrical Connection - Snap Action Switch | Screw |
| Contact Form | 1NO/1NC |
| Over Travel | 0.118 in |
| Terminal Type | Screw |
| Differential Travel | 0.008 in |
| Current Rating | 20 A |
| Mounting Dimension | 1.00" Centers |
| Max. Pretravel | 0.051 in |
| Operating Force | 14.1 to 22.0 oz |
| Type of Actuator | Short Spring Plunger |
| Watertight - Snap Action Switch | No |
| Operating Temp. Range | -25 Degrees to 80 Degrees C |
| Voltage Rating | 480VAC |
| Series | A |
| Actuator Length | Not Applicable |
| Release Force | 10.05 ozf |
| Standards | CSA, UL Listed |
| AC Contact Rating | 20 A @ 480 V |
| DC Contact Rating | 0.25 A @ 250 V, 0.5 A @ 125 V |
| Operating Force - Minimum | 3.92 N |
| Roller Material | Not Applicable |
| Operating Temperature - Minimum | -13 deg F |
| Roller Position | Not Applicable |
| Roller Diameter | Not Applicable |
| Overtravel | 0.118 in |
| Lever Actuator Length | Not Applicable |
| Mounting Hole Diameter | 3/16 in |
| Electrical Connection | Screw |
| Operating Temperature - Maximum | 176 deg F |
| Pretravel | 0.051 in |
| Differential Travel - Maximum | 0.0079 in |
| Roller Adjustability | Fixed |
| Center Mounting Hole Distance | 1 in |
| Operating Force - Maximum | 6.13 N |
| Body Material | Phenolic |
| Differential Travel - Minimum | Not Applicable |
| Roller Width | Not Applicable |
| Actuator Style | Plunger |
| Package Quantity | 1 |
