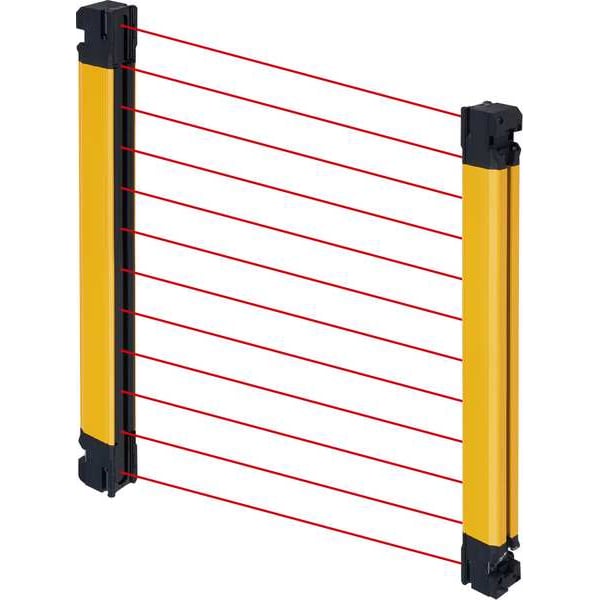

Cortina de luz, 65.6 pies, 24V DC.
| Item | Light Curtain |
|---|---|
| Max. Sensing Distance | 65.6 ft |
| Input Voltage | 24V DC |
| Safety Output Ratings | 300 mA @ 24V DC |
| IP Rating | 65; 67; 67G |
| Housing Material | Aluminum |
| Width | 1.26 in |
| NEMA Rating | Not Rated |
| Protected Height | 23.62 in |
| Number of Beams | 30 |
| Depth | 1-1/2 in |
| Beam Spacing | 0.787 in |
| Effective Aperture Angle | 2.5 deg @ 3 m |
| Cable Connection Transmitter | 5 Pin, M12 |
| Auxiliary Contact Rating | 100 mA @ 24V DC |
| Cable Length | No Cable |
| Response Time | 8 to 40 msec; 10 to 50 msec |
| Number of Aux. Outputs | 1 |
| Standards | EN ISO 13849-1:2015, IEC 60529, IEC 60664-1, IEC 61496-1, IEC 61496-2, IEC 61508, IEC 61508-2 |
| Overall Height | 23.62 in |
| Auxillary Output Circuit Type | PNP, NPN |
| Light Source | 870nm IR LED |
| Cable Connection Receiver | 8 Pin, M12 |
| Operating Temp. Range | -22 to 131 deg F |
| Includes | End Cap |
| Reset Type | Pre Reset |
| Package Quantity | 1 |
