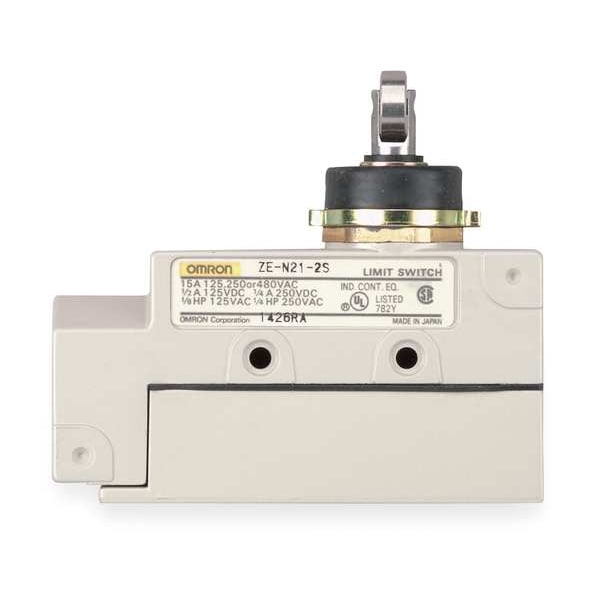

Interruptor de límite, rodillo cruzado, émbolo, SPDT, 15A @ 480V CA, Ubicación del actuador: Superior
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Cross Roller, Plunger |
| Contact Form- Switches | SPDT |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 15 A @ 480 V |
| DC Contact Rating - Limit Switch | 15 A @ 250 V |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| IP Rating | 60 |
| Roller Material | Stainless Steel |
| Boot Sealed Actuator - Limit Switch | No |
| Wiring Entry | G1/2 |
| Movement | Standard |
| Body Height - Limit Switch | 1-3/4 in |
| Roller Dia. | 1/2 in |
| Width | 1 in |
| Actuator Location (Limit Switch) | Top |
| Voltage Rating | 480VAC/250VDC |
| Operating Force | 10 oz to 12 oz |
| Actuator Style (Limit Switch) | Plunger, Cross Roller |
| Stem Thread - Limit Switch | No Stem |
| Contact Form - Limit Switch | SPDT |
| Actuator Style | Cross Roller Plunger |
| NEMA Rating | 1 |
| Number of Poles | 1 |
| Roller Width | 0.19 in |
| Limit Switch Style | General Purpose Limit Switch |
| Body Width - Limit Switch | 3.39 in |
| Series | ZE |
| Operating Temp. Range | 14 to 158 deg F |
| AC Contact Rating | 15 A @ 480 V |
| Contact Form | SPDT |
| Boot Sealed Actuator (Limit Switch) | No |
| Amps | 15 |
| Mounting Hole Spacing - Limit Switch | 1.00 in |
| Body Material | Aluminum |
| Travel | 0.16 in Nominal |
| DC Contact Rating | 15 A @ 250 V |
| Standards | CSA, UL |
| Mounting Hole - Limit Switch | (2) 0.16 in dia |
| Electrical Connection | Screw Terminals |
| Depth | 4 in |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Horizontal) |
| Actuator Location | Top |
| Height | 3.4 in |
| Body Style (Limit Switch) | Miniature |
| Basic Actuator Style (Limit Switch) | Plunger |
| Body Depth - Limit Switch | 1.01 in |
| Arm Width | Not Applicable |
| Actuator Length | 0.02 in |
| Arm Material | Not Applicable |
| Differential Travel | 0.002 in |
| Arm Depth | Not Applicable |
| Mounting Hole Vertical Center to Center Distance | 41 mm |
| Directional Movement | Linear |
| Arm Length - Maximum | Not Applicable |
| NEMA Enclosure Rating | 1 |
| Roller Diameter | 1/2 in |
| Hazardous Location Specification | Not Applicable |
| Pretravel | 0.02 in |
| Total Travel | 0.16 in |
| Overall Width | 3.39 in |
| Operating Force - Maximum | 3.43 N |
| Arm Adjustability | Not Applicable |
| Operating Temperature - Minimum | 14 deg F |
| Mounting Style | Surface |
| Body Configuration | Non Plug-In |
| Arm Length - Minimum | Not Applicable |
| Plunger Adjustability | Fixed |
| Number of Mounting Holes | 2 |
| Body Width | 3.39 in |
| Overtravel | 0.14 in |
| Manufacturer Warranty Length | 1 yr |
| Overall Depth | 1 in |
| Lamp Type | No Lamp Module Included |
| Operating Force - Minimum | 2.45 N |
| Roller Position | Top |
| Wireless Network Interface | Not Applicable |
| Mounting Hole Horizontal Center to Center Distance | 25 mm |
| Body Depth | 1.01 in |
| Operating Temperature - Maximum | 176 deg F |
| Body Height | 1-3/4 in |
| Roller Adjustability | Fixed |
| Boot Sealed Actuator | No Boot Included |
| Action | Momentary |
| Mounting Hole Diameter | 0.16 in |
| Includes Actuator | Actuator Included |
| Package Quantity | 1 |
