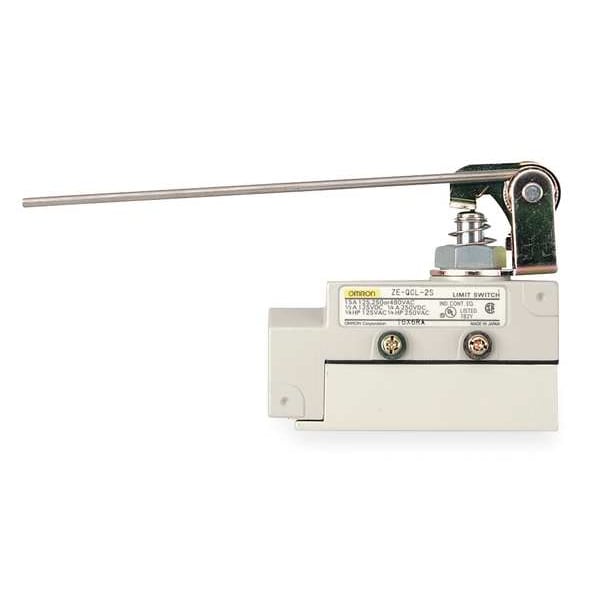

Interruptor de límite, palanca, vástago, un solo polo doble tiro, 15 amperios a 480 voltios de corriente alterna, ubicación del actuador: superior
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Lever, Plunger |
| Contact Form- Switches | SPDT |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 15 A @ 480 V |
| DC Contact Rating - Limit Switch | 15 A @ 250 V |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| Stem Thread - Limit Switch | No Stem |
| Actuator Location | Top |
| Standards | CSA, UL |
| Contact Form | SPDT |
| Series | ZE |
| Limit Switch Style | General Purpose Limit Switch |
| DC Contact Rating | 15 A @ 250 V |
| Contact Form - Limit Switch | SPDT |
| Width | 1 in |
| Body Style (Limit Switch) | Miniature |
| Travel | 1.46 in |
| Body Width - Limit Switch | 3.39 in |
| Basic Actuator Style (Limit Switch) | Plunger |
| Number of Poles | 1 |
| Actuator Length | 5.9 in |
| Amps | 15 |
| Wiring Entry | G1/2 |
| Boot Sealed Actuator (Limit Switch) | No |
| NEMA Rating | 1 |
| IP Rating | 60 |
| Body Depth - Limit Switch | 1.01 in |
| Actuator Length - Limit Switch | 5.9 in |
| Height | 3.4 in |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Horizontal) |
| Electrical Connection | Screw Terminals |
| Actuator Style | Rod Lever |
| Operating Force | 5 oz |
| Boot Sealed Actuator - Limit Switch | No |
| Depth | 2.9 in |
| Body Height - Limit Switch | 1-3/4 in |
| Mounting Hole - Limit Switch | (2) 0.16 in dia |
| Body Material | Aluminum |
| Voltage Rating | 480VAC/250VDC |
| Actuator Location (Limit Switch) | Top |
| Movement | Top |
| Actuator Style (Limit Switch) | Plunger, Lever |
| AC Contact Rating | 15 A @ 480 V |
| Mounting Hole Spacing - Limit Switch | 1.00 in |
| Operating Temp. Range | 14 to 158 deg F |
| Arm Material | Stainless Steel |
| Differential Travel | 0.06 in |
| Roller Width | Not Applicable |
| Roller Material | Stainless Steel |
| Arm Width | Not Applicable |
| Arm Depth | Not Applicable |
| Arm Length - Maximum | Not Applicable |
| Total Travel | 1.46 in |
| Mounting Hole Diameter | 0.16 in |
| Plunger Adjustability | Fixed |
| Pretravel | 0.59 in |
| Body Configuration | Non Plug-In |
| Roller Diameter | 5.91 in |
| Body Depth | 1.01 in |
| Boot Sealed Actuator | No Boot Included |
| Hazardous Location Specification | Not Applicable |
| Body Height | 1-3/4 in |
| Operating Temperature - Maximum | 176 deg F |
| Mounting Style | Surface |
| Mounting Hole Vertical Center to Center Distance | 41 mm |
| Mounting Hole Horizontal Center to Center Distance | 25 mm |
| Includes Actuator | Actuator Included |
| Roller Position | Top |
| Lamp Type | No Lamp Module Included |
| Roller Adjustability | Fixed |
| Number of Mounting Holes | 2 |
| NEMA Enclosure Rating | 1 |
| Arm Adjustability | Adjustable |
| Overtravel | 0.87 in |
| Directional Movement | Linear |
| Wireless Network Interface | Not Applicable |
| Overall Depth | 1 in |
| Arm Length - Minimum | Not Applicable |
| Manufacturer Warranty Length | 1 yr |
| Operating Force - Maximum | 5.4 ozf |
| Action | Maintained |
| Body Width | 3.39 in |
| Operating Temperature - Minimum | 14 deg F |
| Package Quantity | 1 |
