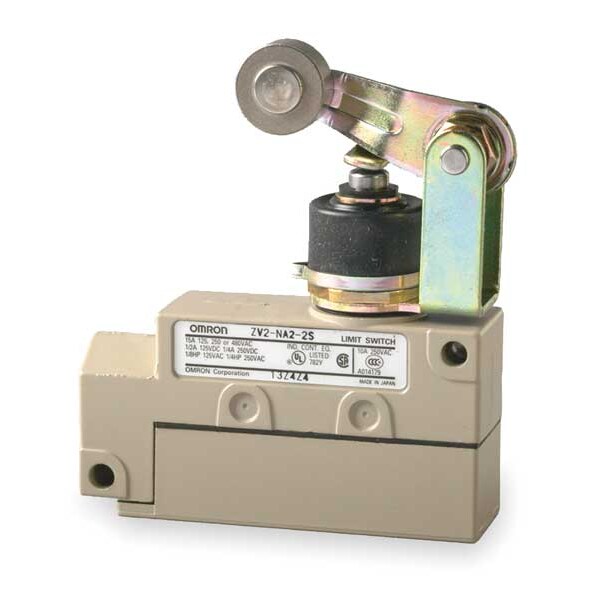

Interruptor de límite, émbolo, rodillo, SPDT, 10A @ 480V AC, Ubicación del actuador: Superior
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger, Roller |
| Contact Form- Switches | SPDT |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 10 A @ 480 V |
| DC Contact Rating - Limit Switch | Not Rated |
| Body Style - Limit Switch | Micro |
| Mounting - Limit Switch | Flange |
| DC Contact Rating | Not Rated |
| NEMA Rating | 1, 2, 3, 4, 5 |
| Voltage Rating | 480VAC |
| Stem Thread - Limit Switch | No Stem |
| Actuator Style | Roller Plunger, Boot Sealed |
| Amps | 15/15/10 |
| Movement | Standard |
| Roller Dia. | 1/2 in |
| Operating Temp. Range | 14 to 176 deg F |
| Boot Sealed Actuator - Limit Switch | Yes |
| Actuator Location (Limit Switch) | Top |
| Number of Poles | 1 |
| Body Style (Limit Switch) | Micro |
| Mounting Hole Spacing - Limit Switch | 1.63 in |
| Height | 2.96 in |
| Roller Width | 0.19 in |
| AC Contact Rating | 10 A @ 480 V |
| Operating Force | 4.9 N-m |
| Body Material | Aluminum |
| Contact Form - Limit Switch | SPDT |
| Body Width - Limit Switch | 3.39 in |
| Actuator Style (Limit Switch) | Plunger, Roller |
| Body Depth - Limit Switch | 1 in |
| Boot Sealed Actuator (Limit Switch) | Yes |
| Body Height - Limit Switch | 1.3 in |
| Wiring Entry | G1/2 |
| Series | ZV2 |
| Roller Material | Stainless Steel |
| Contact Form | SPDT |
| IP Rating | 65 |
| Width | 1 in |
| Mounting Hole - Limit Switch | (2) 0.17 in dia |
| Basic Actuator Style (Limit Switch) | Plunger |
| Standards | CSA, UL |
| Limit Switch Style | General Purpose Limit Switch |
| Actuator Location | Top |
| Depth | 3.39 in |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Horizontal) |
| Travel | 0.18 in |
| Electrical Connection | Screw Terminals |
| Arm Width | Not Applicable |
| Differential Travel | 0.01 in |
| Actuator Length | 0.04 in |
| Arm Material | Aluminum |
| Arm Depth | Not Applicable |
| Plunger Adjustability | Fixed |
| Action | Momentary |
| Overtravel | 0.14 in |
| Body Depth | 1 in |
| Operating Torque - Minimum | Not Applicable |
| Mounting Hole Diameter | 0.2 in |
| Boot Sealed Actuator | Boot Included |
| Includes Actuator | Actuator Included |
| Roller Diameter | 1/2 in |
| Arm Adjustability | Not Applicable |
| Roller Position | Top |
| Lamp Type | No Lamp Module Included |
| Manufacturer Warranty Length | 1 yr |
| Roller Adjustability | Fixed |
| Operating Force - Maximum | 4.9 N |
| Number of Mounting Holes | 2 |
| Body Configuration | Non Plug-In |
| Total Travel | 0.18 in |
| Arm Length - Minimum | Not Applicable |
| Body Width | 3.39 in |
| Pretravel | 0.04 in |
| Overall Depth | 1 in |
| NEMA Enclosure Rating | 4, 1, 3, 2, 5 |
| Mounting Hole Horizontal Center to Center Distance | 41 mm |
| Mounting Hole Vertical Center to Center Distance | 41 mm |
| Operating Torque - Maximum | Not Applicable |
| Operating Temperature - Minimum | 14 deg F |
| Mounting Style | Diagonal Side |
| Directional Movement | Linear |
| Arm Length - Maximum | Not Applicable |
| Body Height | 1.3 in |
| Wireless Network Interface | Not Applicable |
| Operating Temperature - Maximum | 176 deg F |
| Hazardous Location Specification | Not Applicable |
| Overall Width | 3.39 in |
| Package Quantity | 1 |
