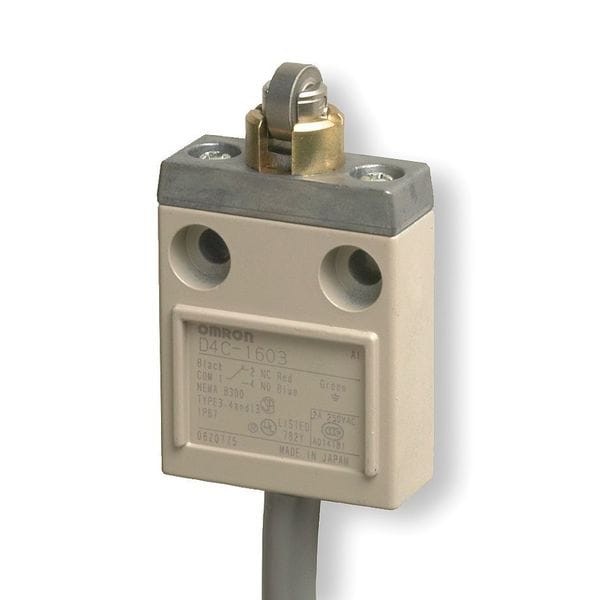

Interruptor de límite, émbolo, rodillo, SPDT, 5A @ 240V AC, Ubicación del actuador: Superior
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Plunger, Roller |
| Contact Form- Switches | SPDT |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 5 A @ 240 V |
| DC Contact Rating - Limit Switch | Not Rated |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| Actuator Style | Plunger |
| Voltage Rating | 240VAC |
| Width | 1.57 in |
| Boot Sealed Actuator - Limit Switch | No |
| AC Contact Rating | 5 A @ 240 V |
| Movement | Top |
| Actuator Style (Limit Switch) | Plunger, Roller |
| Body Height - Limit Switch | 2.13 in |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Horizontal) |
| Body Material | Aluminum |
| Electrical Connection | 3m Cable, SJT |
| Wiring Entry | Cable |
| Depth | 0.63 in |
| Mounting Hole Spacing - Limit Switch | 0.98 in |
| Travel | Maximum Pre-Travel 1.8mm, Minimum Over-Travel 3mm |
| Stem Thread - Limit Switch | No Stem |
| Basic Actuator Style (Limit Switch) | Plunger |
| Height | 2.64 in |
| Roller Material | Stainless Steel |
| Limit Switch Style | General Purpose Limit Switch |
| Amps | 5 |
| Operating Temp. Range | -14 to 158 deg F |
| Roller Dia. | 0.47 in |
| Body Depth - Limit Switch | 0.63 in |
| Body Width - Limit Switch | 1.33 in |
| Body Style (Limit Switch) | Miniature |
| Actuator Location (Limit Switch) | Top |
| Operating Force | 6.9 N-m |
| Standards | CE, CSA, UL |
| Contact Form | SPDT |
| Number of Poles | 1 |
| Series | D4C |
| NEMA Rating | 13, 3, 4 |
| IP Rating | 67 |
| Boot Sealed Actuator (Limit Switch) | No |
| DC Contact Rating | Not Rated |
| Roller Width | 0.2 in |
| Contact Form - Limit Switch | SPDT |
| Actuator Location | Top |
| Mounting Hole - Limit Switch | (2) 0.20 in dia |
| Arm Width | Not Applicable |
| Differential Travel | 0.01 in |
| Actuator Length | Not Applicable |
| Arm Depth | Not Applicable |
| Boot Sealed Actuator | No Boot Included |
| Operating Temperature - Maximum | 158 deg F |
| Roller Adjustability | Fixed |
| Arm Adjustability | Not Applicable |
| Action | Momentary |
| Pretravel | 0.07 in |
| Operating Torque - Minimum | 2.92 in-lb |
| Roller Position | Top |
| Directional Movement | Linear |
| Wireless Network Interface | Not Applicable |
| Mounting Style | Surface |
| Arm Length - Maximum | Not Applicable |
| Body Height | 2.13 in |
| Operating Force - Minimum | Not Applicable |
| Body Configuration | Plug-In |
| Operating Temperature - Minimum | 14 deg F |
| Roller Diameter | 0.47 in |
| Hazardous Location Specification | Not Applicable |
| Body Width | 1.33 in |
| Reset Travel | Not Applicable |
| Mounting Hole Vertical Center to Center Distance | 25 mm |
| Plunger Adjustability | Fixed |
| Body Depth | 0.62 in |
| Operating Torque - Maximum | 61.07 in-lb |
| Mounting Hole Horizontal Center to Center Distance | 25 mm |
| Arm Length - Minimum | Not Applicable |
| Number of Mounting Holes | 2 |
| Overtravel | 0.12 in |
| Total Travel | 0.19 in |
| Includes Actuator | Actuator Included |
| NEMA Enclosure Rating | 4, 13, 3 |
| Mounting Hole Diameter | 0.2 in |
| Operating Force - Maximum | 11.77 N |
| Lamp Type | LED |
| Package Quantity | 1 |
