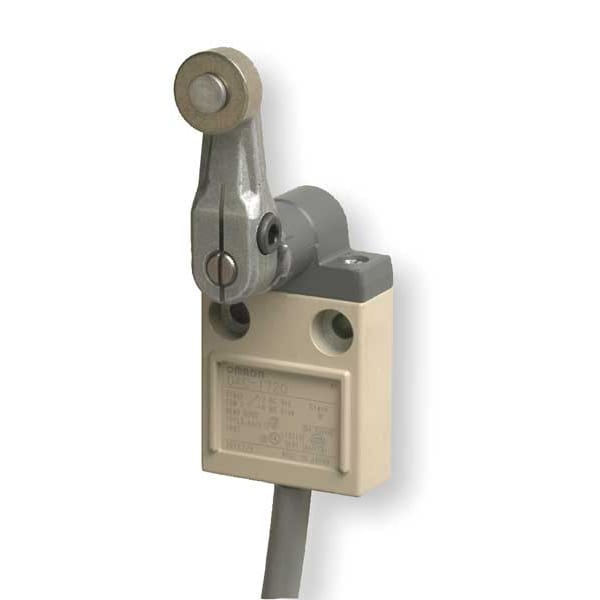

Interruptor de límite, palanca de rodillo, rotativo, SPDT, 5A @ 240V CA, Ubicación del actuador: Lateral
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Rotary |
| Actuator Style - Limit Switch | Roller Lever, Rotary |
| Contact Form- Switches | SPDT |
| Actuator Location - Limit Switch | Side |
| AC Contact Rating - Limit Switch | 5 A @ 240 V |
| DC Contact Rating - Limit Switch | Not Rated |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| Height | 4.04 in |
| Actuator Length | 1-1/2 in |
| Amps | 5 |
| Body Depth - Limit Switch | 0.63 in |
| Contact Form - Limit Switch | SPDT |
| IP Rating | 67 |
| Body Height - Limit Switch | 2.13 in |
| Voltage Rating | 240VAC |
| Roller Material | Stainless Steel |
| Number of Poles | 1 |
| Arm Material | Aluminum |
| Mounting Hole - Limit Switch | (2) 0.20 in dia |
| Actuator Style (Limit Switch) | Rotary, Roller Lever |
| NEMA Rating | 13, 3, 4 |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Horizontal) |
| Actuator Location | Side |
| Body Style (Limit Switch) | Miniature |
| Body Width - Limit Switch | 1.33 in |
| Body Material | Aluminum |
| DC Contact Rating | Not Rated |
| Roller Dia. | 0.69 in |
| Depth | 0.63 in |
| Mounting Hole Spacing - Limit Switch | 0.98 in |
| Operating Force | 5.7 N-m |
| Operating Temp. Range | -14 to 158 deg F |
| Contact Form | SPDT |
| Travel | Total Travel 38 Degrees |
| Roller Width | 0.28 in |
| Boot Sealed Actuator (Limit Switch) | No |
| Boot Sealed Actuator - Limit Switch | No |
| Actuator Location (Limit Switch) | Side |
| Limit Switch Style | General Purpose Limit Switch |
| Stem Thread - Limit Switch | No Stem |
| Actuator Length - Limit Switch | 1-1/2 in |
| Standards | CE, CSA, UL |
| Arm Width | 0.63 in |
| Actuator Style | Rotary Lever Arm |
| AC Contact Rating | 5 A @ 240 V |
| Series | D4C |
| Electrical Connection | 5m Cable, SJT |
| Basic Actuator Style (Limit Switch) | Rotary |
| Movement | CCW, CW |
| Width | 1.57 in |
| Differential Travel | 3 Degrees |
| Arm Depth | 0.54 in |
| Overall Depth | 1.97 in |
| Boot Sealed Actuator | No Boot Included |
| Manufacturer Warranty Length | 1 yr |
| Lamp Type | LED |
| Mounting Hole Horizontal Center to Center Distance | 25 mm |
| Body Width | 1.57 in |
| Hazardous Location Specification | Not Applicable |
| Number of Mounting Holes | 2 |
| Overall Height | 4.04 in |
| Operating Force - Maximum | 5.69 N |
| Total Travel | 38 Degrees |
| Operating Force - Minimum | Not Applicable |
| Mounting Style | Surface |
| NEMA Enclosure Rating | 4, 13, 3 |
| Overall Width | 1.57 in |
| Body Depth | 0.62 in |
| Reset Travel | Not Applicable |
| Overtravel | 40 Degrees |
| Operating Torque - Minimum | Not Applicable |
| Directional Movement | CW, CCW |
| Mounting Hole Vertical Center to Center Distance | 25 mm |
| Arm Length - Maximum | 1.84 in |
| Operating Temperature - Minimum | 14 deg F |
| Body Configuration | Plug-In |
| Arm Adjustability | Fixed |
| Operating Torque - Maximum | Not Applicable |
| Body Height | 65 in |
| Roller Diameter | 0.68 in |
| Roller Adjustability | Fixed |
| Pretravel | 25 Degrees |
| Action | Momentary |
| Includes Actuator | Actuator Included |
| Mounting Hole Diameter | 0.2 in |
| Wireless Network Interface | Not Applicable |
| Plunger Adjustability | Fixed |
| Roller Position | Side |
| Operating Temperature - Maximum | 158 deg F |
| Package Quantity | 1 |
