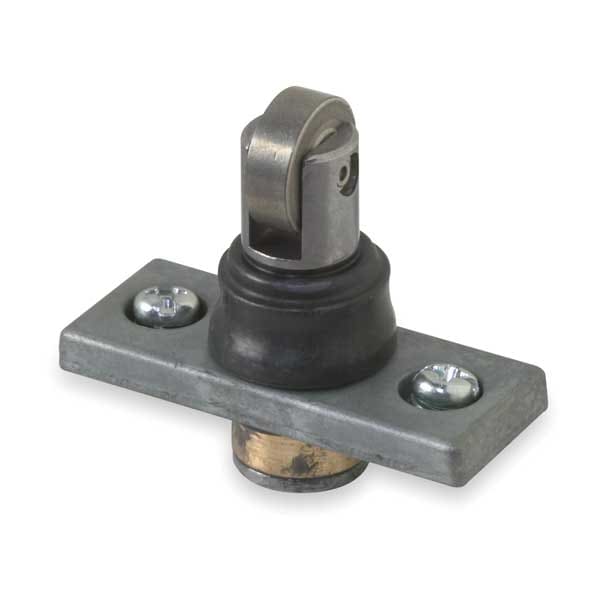

Cabeza de interruptor de límite, émbolo de cruzador sellado, parte superior.
| Item | Limit Switch Head |
|---|---|
| Operating Temp. | -14 to 158 deg F |
| Contact Form | Not Specified |
| Features | Sealed Cable Entrance, Multiple Mounting Possible, Sealed Plunger Section, Sealed Switch Section |
| Amps | Not Specified |
| NEMA Rating | 1, 12, 13, 3, 3R, 4, 5, 6 |
| For Use With | Mfr. No. D4C1633 |
| Travel | Not Specified |
| Operating Force | 17.65 N |
| Actuator Length | 1.26 in |
| Actuator Location | Top |
| Voltage Rating | Not Specified |
| IP Rating | IP67 |
| Description/Special Features | Not Specified |
| Standards | CCC, CSA, EN, UL Listed |
| Movement | Top |
| Actuator Style | Cross Roller Plunger |
| Arm Width | 0.17 in |
| Roller Position | Not Applicable |
| Roller Width | Not Applicable |
| Arm Material | Stainless Steel |
| Arm Depth | Not Applicable |
| Series | D4C |
| Roller Material | Not Applicable |
| Pretravel | 0.07 in |
| Overtravel | 0.12 in |
| Reset Travel | Not Applicable |
| Roller Diameter | Not Applicable |
| Arm Length - Minimum | Not Applicable |
| Roller Adjustability | Not Applicable |
| Compatible with Manufacturer Model Number | D4C1633 |
| Total Travel | Not Applicable |
| Differential Travel | 0.01 in |
| Operating Torque | 52.04 in-lb |
| Plunger Adjustability | Fixed |
| Action | Not Applicable |
| Compatible with Series | D4C |
| Operating Temperature - Maximum | 158 deg F |
| NEMA Enclosure Rating | 1, 13, 3, 4, 6, 12, 3R, 5 |
| Directional Movement | Linear |
| Operating Temperature - Minimum | 14 deg F |
| Arm Length - Maximum | 1.26 in |
| Arm Adjustability | Fixed |
| Compatible Manufacturer Part Number | D4C1633 |
| Compatible Manufacturer Model Number | D4C1633 |
| Package Quantity | 1 |
