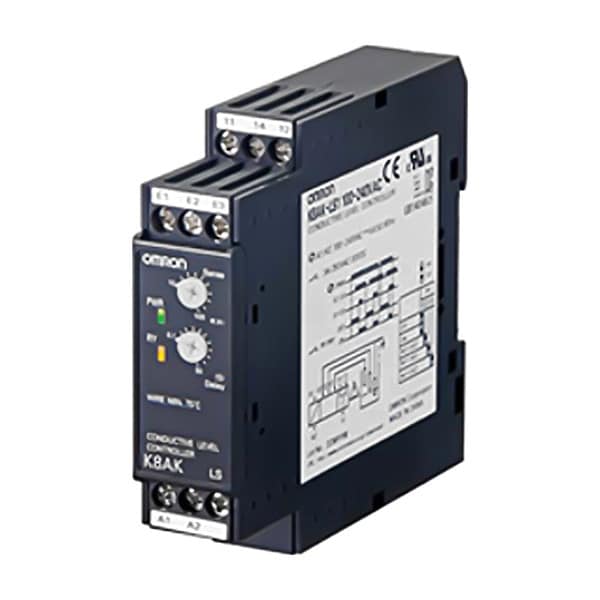

Relé de control de nivel, sonda única, 5A, bomba arriba/abajo.
| Item | Level Control Relay |
|---|---|
| For Use With | Liquid Level Control Equipment |
| Includes | PC and ABS (UL 94 V-0) |
| Features | Applicable as a Floatless Switch, Prevents Relay Chattering, Self-holding Circuit, Adjustable Sensitivity |
| Input Voltage | 100 to 240V AC |
| Status Indicator | LED Indicator |
| Standards | CSA C22.2 No.14, CCC GB/T 14048.5, EN 61010-1, EN 61326-1 Industrial Electromagnetic Environment, UL 508 (Recognition), Korean Radio Waves Act (Act 10564) |
| Contact Form | SPDT |
| Maximum Resistance Sensitivity | 100,000 ohm |
| Body Width | 0.89 in |
| Maximum Switching Capacity | 1,250 VA |
| Electrical Connection | Screw Terminal |
| Current Rating | 5 A |
| Minimum Resistance Sensitivity | 10,000 ohm |
| Coil Voltage | 100 to 240V AC |
| Flat Pin Width | 0.2 in |
| Number of Pins | 2 |
| Mounting Style | DIN Rail |
| Frequency | 50/60 Hz |
| Minimum Operating Temperature | -4 deg F |
| Number of Probes | Single Probe |
| Contact Rating (DC) | 5 A @ 30V DC |
| Response Time | 10 sec |
| Dielectric Strength | 2,000V AC between External Terminals and Case, 2,000V AC between Input and Output Terminals, 2,000V AC between Power Supply and Input Terminals, 2,000V AC between Power Supply and Output Terminals |
| Body Height | 3.54 in |
| Relay Function | Pump Down, Pump Up |
| Base Shape | Square |
| Weight | 5.29 oz |
| Overall Depth | 3.94 in |
| Maximum Operating Temperature | 140 deg F |
| Adjustment Method | Dip Switch |
| Electrical Operating Durability | 100,000 |
| Body Depth | 3.94 in |
| Mechanical Operating Durability | 10,000,000 |
| Contact Rating (AC) | 5 A @ 250V AC |
| Power Consumption | 4.6 VA |
| Package Quantity | 1 |
