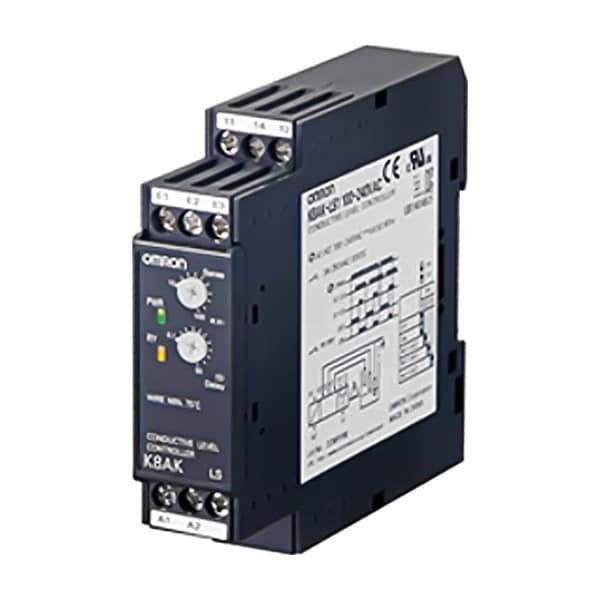

Relevador de monitoreo, 8 A, 24VCA/VCD, 4 pines.
| Trip Point | 0.1 |
|---|---|
| Status Indicator | LED Indicator |
| Input Voltage | 24V AC/DC |
| Electrical Connection | Screw Terminal |
| Item | Monitor Relay |
| Standards | EN 60947-5-1, UL 508 (Recognition), Korean Radio Waves Act (Act 10564), CSA C22.2 No.14, CCC GB/T 14048.5 |
| Contact Form | SPDT |
| Core Type | Internal |
| Number of Pins | 4 |
| Overall Depth | 3.94 in |
| Electrical Phase | Single |
| Minimum Operating Temperature | -4 deg F |
| Sensing Hole Diameter | Not Applicable |
| Power Consumption | 1.1 W, 2 VA |
| For Use With | Industrial Facilities and Equipment |
| Dielectric Strength | 2,000V AC between External Terminals and Case, 2,000V AC between Input Terminals and Output Terminals, 2,000V AC between Power Supply Terminals and Input Terminals, 2,000V AC between Power Supply Terminals and Output Terminals |
| Current Rating | 8 A |
| Compatible with Manufacturer Model Number | K8AC-CT200L |
| Housing Material | ABS, PC |
| Weight | 0.33 lb |
| Wire Gauge | 16 AWG, 18 AWG |
| Contact Rating (AC) | 5 A @ 250V |
| Body Height | 3.54 in |
| Maximum Switching Capacity | 1,250 VA |
| Mounting Style | DIN Rail |
| Adjustment Method | Switch |
| Trip Point Type | Adjustable |
| Body Width | 0.89 in |
| Body Depth | 3.94 in |
| Mechanical Operating Durability | 10,000,000 |
| Frequency | 50/60 Hz |
| Maximum Operating Temperature | 140 deg F |
| Monitored Parameters | Overcurrent, Undercurrent |
| IP Rating | IP20 |
| Contact Rating (DC) | 5 A @ 30V |
| Electrical Operating Durability | 100,000 |
| Package Quantity | 1 |
