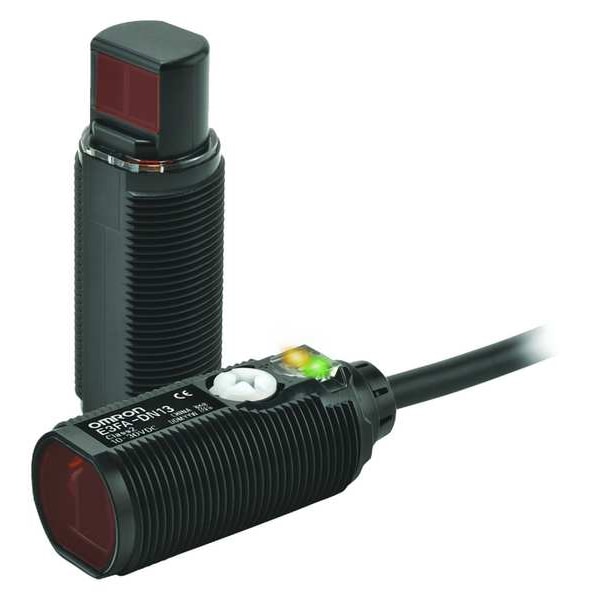

Sensor fotoeléctrico, cilíndrico, difuso.
| Item | Cylindrical Photoelectric Sensor |
|---|---|
| Circuit Type | NPN |
| IP Rating | 69K |
| Width | 3/4 in |
| Depth | 3-1/4 in |
| Operating Mode - Photoelectric Sensor | Dark On, Selectable Light On |
| Max. Load Current | 100 mA |
| Electrical Connection | M12 Connector |
| Operating Temp. Range | -25 to 55 deg C |
| Max. Sensing Distance | 100 mm |
| Sensing Method - Cylindrical Photoelectric Sensor | Diffuse |
| Features | High Power Red LED for Easy Sensor Alignment and Dependable Outputs In Dusty Environments |
| Body Material | ABS Plastic |
| Power Requirement - Cylindrical Photoelectric Sensor | 5 to 30 V DC |
| NEMA Rating | IP69K |
| Electrical Connection - Cylindrical Photoelectric Sensor | Male Connector |
| Standards | CE Approval |
| Length - Cylindrical Photoelectric Sensor | 45 mm |
| Length | 45 mm |
| Circuit Type - Cylindrical Photoelectric Sensor | NPN |
| Power Requirement | 5 to 30VDC |
| Light Source | Red LED |
| Min. Object Size | 75 mm dia (Opaque) |
| Diameter - Cylindrical Photoelectric Sensor | 18 mm |
| Max. Sensing Distance - Cylindrical Photoelectric Sensor | 100 mm |
| Shape | Cylindrical |
| Operation Mode | Dark On, Selectable Light On |
| Response Time | 0.5 msec |
| Sensing Method | Diffuse |
| Diameter | 18 mm |
| Package Quantity | 1 |
