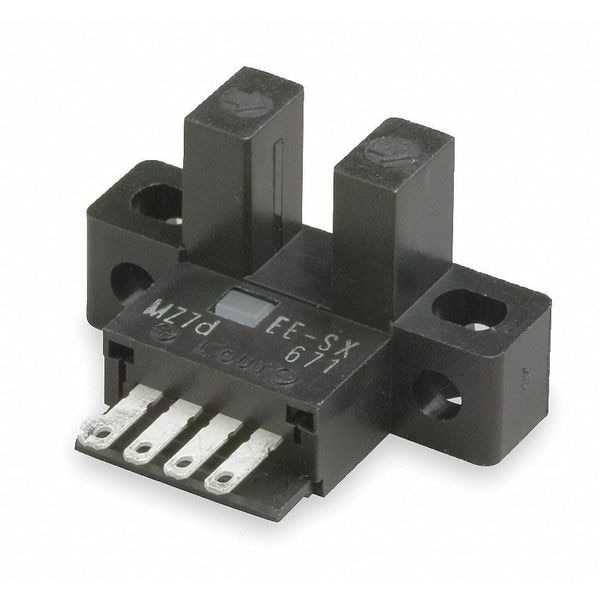

Sensor fotoeléctrico, ranura en forma de L, de haz de paso.
| Item | Photoelectric Sensor |
|---|---|
| IP Rating | 50 |
| Sensing Method - Rectangular Photoelectric Sensor | Through Beam |
| Circuit Type | PNP |
| Power Requirement - Rectangular Photoelectric Sensor | 5 to 24 V DC |
| Output Circuit Type - Rectangular Photoelectric Sensor | PNP |
| Width | 1/4 in |
| Depth | 0.63 in |
| Operating Mode - Photoelectric Sensor | Dark On, Selectable Light On |
| Max. Sensing Distance - Rectangular Photoelectric Sensor | 5 mm |
| Max. Load Current | 50 mA |
| Electrical Connection - Rectangular Photoelectric Sensor | Solder Terminal |
| Operating Frequency | 1,000 Hz |
| Height - Rectangular Photoelectric Sensor | 26 mm |
| Electrical Connection | Spade |
| Shape | L-Slot |
| Operation Mode | Dark On, Selectable Light On |
| Depth - Rectangular Photoelectric Sensor | 16 mm |
| Features | No Incident Light, Operation Indicator Will Turn On When the Light Is Interrupted, Polycarbonate Cover and Emitter/Receiver |
| Standards | CE Approval, CSA Certified, UL Listed |
| Sensing Method | Through Beam |
| Body Material | PBT |
| Light Source | Infrared LED |
| Power Requirement | 5 to 24VDC |
| Min. Object Size | 2 x 0.80mm Opaque |
| Length | 1.03 in |
| Max. Sensing Distance | 5 mm |
| Operating Temp. Range | -25 to 55 deg C |
| Width - Rectangular Photoelectric Sensor | 6 mm |
| Package Quantity | 1 |
