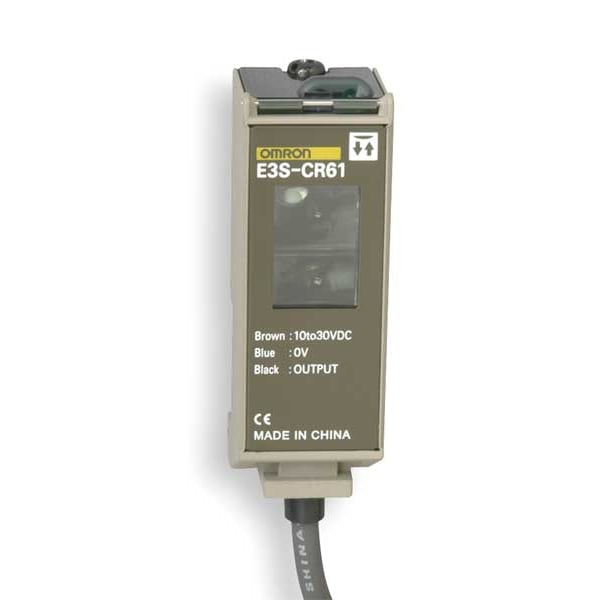

Sensor fotoeléctrico, rectangular, difuso
| Item | Photoelectric Sensor |
|---|---|
| IP Rating | 67 |
| Sensing Method - Rectangular Photoelectric Sensor | Diffuse |
| Circuit Type | NPN/PNP |
| Power Requirement - Rectangular Photoelectric Sensor | 10 to 30 V DC |
| Output Circuit Type - Rectangular Photoelectric Sensor | NPN, PNP |
| Width | 0.91 in |
| Depth | 1.97 in |
| Operating Mode - Photoelectric Sensor | Dark On, Selectable Light On |
| Max. Sensing Distance - Rectangular Photoelectric Sensor | 500 mm |
| Max. Load Current | 100 mA |
| Electrical Connection - Rectangular Photoelectric Sensor | Cable |
| Electrical Connection | 2m cable |
| Height - Rectangular Photoelectric Sensor | 20 mm |
| Depth - Rectangular Photoelectric Sensor | 50 mm |
| Body Material | Die Cast Zinc |
| Width - Rectangular Photoelectric Sensor | 23 mm |
| Response Time | 2 msec |
| Light Source | Infrared LED |
| Length | 0.8 in |
| Sensing Method | Diffuse |
| Features | Mutual Interference Prevention, Output Short Circuit Protection, Power Supply Reverse Polarity Protection, Sensitivity Adjustment |
| Operating Temp. Range | -25 to 55 deg C |
| Standards | CE Approval |
| Footnotes | 2,3,4 |
| NEMA Rating | 4X, 6P |
| Power Requirement | 10 to 30VDC |
| Shape | Rectangular |
| Operation Mode | Dark On, Selectable Light On |
| Max. Sensing Distance | 500 mm |
| Package Quantity | 1 |
