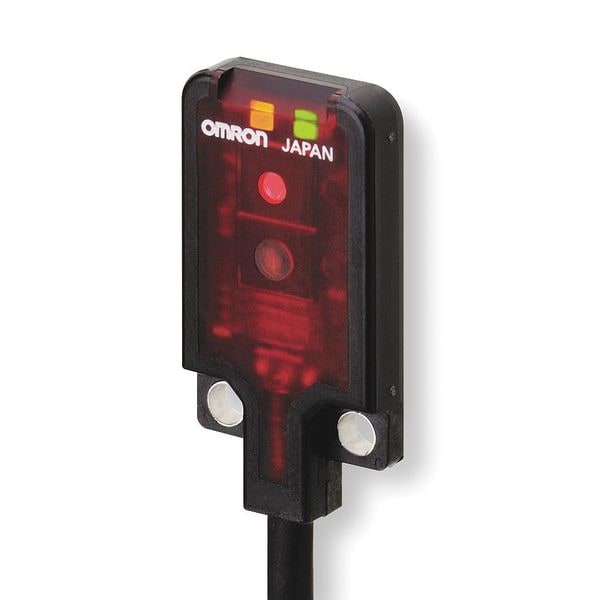

Sensor fotoeléctrico, rectangular, difuso.
| Item | Photoelectric Sensor |
|---|---|
| Circuit Type | NPN |
| Sensing Method - Rectangular Photoelectric Sensor | Diffuse |
| IP Rating | 67 |
| Power Requirement - Rectangular Photoelectric Sensor | 12 to 24 V DC |
| Width | 0.28 in |
| Output Circuit Type - Rectangular Photoelectric Sensor | NPN |
| Operating Mode - Photoelectric Sensor | Dark On |
| Depth | 0.43 in |
| Max. Sensing Distance - Rectangular Photoelectric Sensor | 30 mm |
| Max. Load Current | 50 mA |
| Electrical Connection - Rectangular Photoelectric Sensor | Cable |
| Electrical Connection | 2m cable |
| Height - Rectangular Photoelectric Sensor | 24 mm |
| Length | 0.94 in |
| Body Material | PBT |
| Light Source | Red LED |
| Operating Temp. Range | -25 to 55 deg C |
| Standards | CE Approval |
| Footnotes | 4 |
| Power Requirement | 12 to 24VDC |
| Features | Output Short-Cut And Output Reverse Polarity Protection, Surge Suppressor |
| Sensing Method | Diffuse |
| Depth - Rectangular Photoelectric Sensor | 11 mm |
| Width - Rectangular Photoelectric Sensor | 7 mm |
| Shape | Rectangular |
| Response Time | 1 msec |
| Max. Sensing Distance | 30 mm |
| Operation Mode | Dark On |
| Min. Object Size | 0.15 mm dia |
| Package Quantity | 1 |
