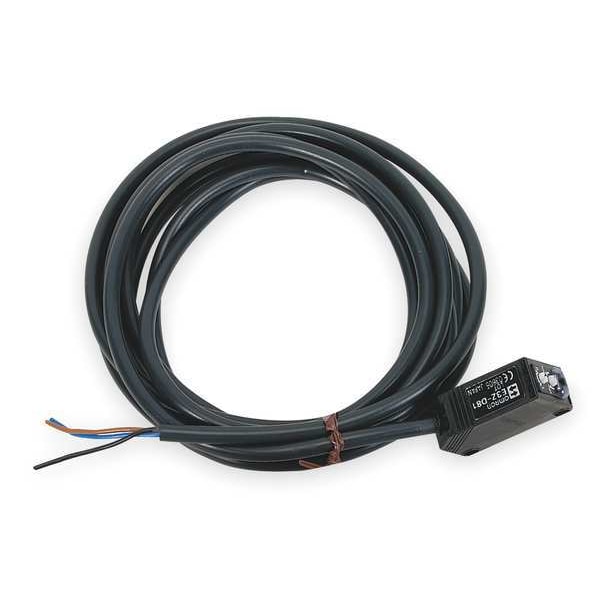

Sensor fotoeléctrico, rectangular, difuso
| Item | Photoelectric Sensor |
|---|---|
| IP Rating | 67 |
| Circuit Type | PNP |
| Sensing Method - Rectangular Photoelectric Sensor | Diffuse |
| Power Requirement - Rectangular Photoelectric Sensor | 12 to 24 V DC |
| Width | 0.41 in |
| Output Circuit Type - Rectangular Photoelectric Sensor | PNP |
| Depth | 0.79 in |
| Operating Mode - Photoelectric Sensor | Dark On, Selectable Light On |
| Max. Sensing Distance - Rectangular Photoelectric Sensor | 100 mm |
| Max. Load Current | 100 mA |
| Electrical Connection - Rectangular Photoelectric Sensor | Cable |
| Height - Rectangular Photoelectric Sensor | 30 mm |
| Electrical Connection | 2m cable |
| Length | 1.2 in |
| Sensing Method | Diffuse |
| Body Material | PBT |
| Shape | Rectangular |
| Width - Rectangular Photoelectric Sensor | 10 mm |
| Features | Output Short Circuit and Power Supply Reverse Polarity Protection |
| Power Requirement | 12 to 24VDC |
| Operating Temp. Range | -25 to 55 deg C |
| Response Time | 1 msec |
| Footnotes | 4 |
| Standards | CE Approval |
| Light Source | Infrared LED |
| Operation Mode | Dark On, Selectable Light On |
| Max. Sensing Distance | 100 mm |
| Depth - Rectangular Photoelectric Sensor | 20 mm |
| Package Quantity | 1 |
