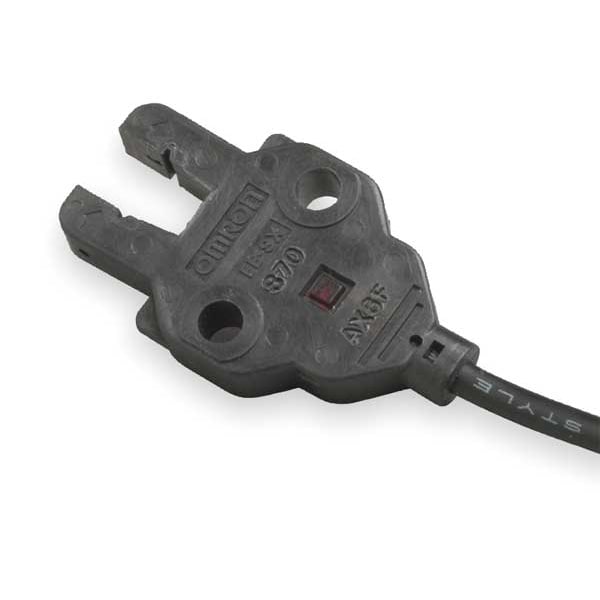

Sensor fotoeléctrico, salida estándar, barrera de haz pasante.
| Item | Photoelectric Sensor |
|---|---|
| IP Rating | 60 |
| Circuit Type | PNP |
| Sensing Method - Rectangular Photoelectric Sensor | Through Beam |
| Power Requirement - Rectangular Photoelectric Sensor | 5 to 24 V DC |
| Width | 0.54 in |
| Output Circuit Type - Rectangular Photoelectric Sensor | PNP |
| Operating Mode - Photoelectric Sensor | Light On |
| Depth | 0.16 in |
| Max. Sensing Distance - Rectangular Photoelectric Sensor | 5 mm |
| Max. Load Current | 50 mA |
| Operating Frequency | 1 Hz |
| Electrical Connection - Rectangular Photoelectric Sensor | Cable |
| Height - Rectangular Photoelectric Sensor | 31 mm |
| Electrical Connection | 2m cable |
| Sensing Method | Through Beam |
| Body Material | PBT |
| Depth - Rectangular Photoelectric Sensor | 4 mm |
| Footnotes | 4 |
| Light Source | Infrared LED |
| Length | 1.22 in |
| Operation Mode | Light On |
| Min. Object Size | 2 x 0.80mm Opaque |
| Shape | Standard Slot |
| Power Requirement | 5 to 24VDC |
| Width - Rectangular Photoelectric Sensor | 14 mm |
| Standards | CE Approval, CSA Certified, UL Listed |
| Operating Temp. Range | -25 to 55 deg C |
| Max. Sensing Distance | 5 mm |
| Package Quantity | 1 |
