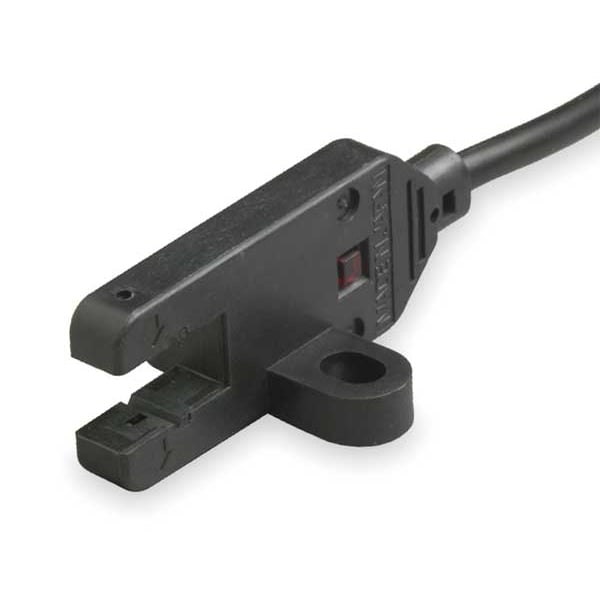

Sensor fotoeléctrico, ranura en T, barrera de haz.
| Item | Photoelectric Sensor |
|---|---|
| Circuit Type | NPN |
| IP Rating | 60 |
| Sensing Method - Rectangular Photoelectric Sensor | Through Beam |
| Power Requirement - Rectangular Photoelectric Sensor | 5 to 24 V DC |
| Output Circuit Type - Rectangular Photoelectric Sensor | NPN |
| Width | 0.47 in |
| Depth | 0.47 in |
| Operating Mode - Photoelectric Sensor | Light On |
| Max. Load Current | 100 mA |
| Max. Sensing Distance - Rectangular Photoelectric Sensor | 5 mm |
| Operating Frequency | 1 Hz |
| Electrical Connection - Rectangular Photoelectric Sensor | Cable |
| Electrical Connection | 2m cable |
| Height - Rectangular Photoelectric Sensor | 31 mm |
| Shape | T-Slot |
| Min. Object Size | 2 x 0.80mm Opaque |
| Sensing Method | Through Beam |
| Light Source | Infrared LED |
| Power Requirement | 5 to 24VDC |
| Operation Mode | Light On |
| Width - Rectangular Photoelectric Sensor | 12 mm |
| Operating Temp. Range | -25 to 55 deg C |
| Length | 1.22 in |
| Max. Sensing Distance | 5 mm |
| Standards | CE Approval, CSA Certified, UL Listed |
| Body Material | PBT |
| Footnotes | 4 |
| Depth - Rectangular Photoelectric Sensor | 12 mm |
| Package Quantity | 1 |
