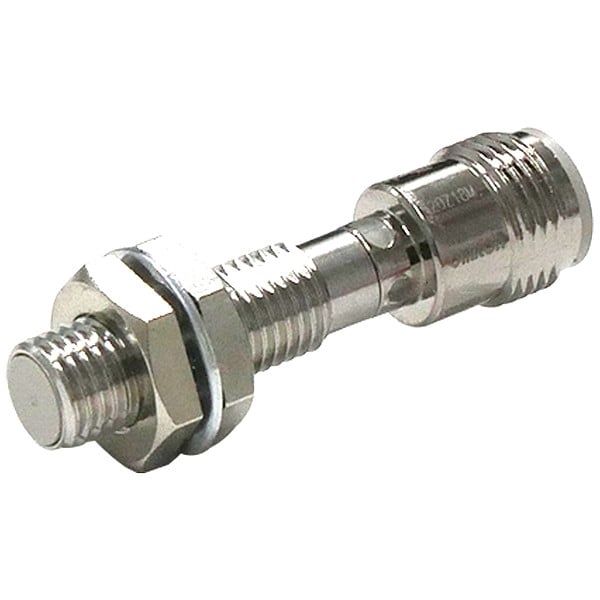

Sensor de proximidad, 10 a 30 V DC, 43 mm L
| Item | Proximity Sensor |
|---|---|
| Proximity Sensing Method | Inductive |
| Proximity Sensor Power Requirement | 10 to 30 V DC |
| Proximity Sensor Output Circuit Type | 3 Wire NPN |
| Output Mode | NO |
| Proximity Sensor Diameter | 8 mm |
| Length | 43 mm |
| Max. Detecting Distance | 1.5 mm |
| Proximity Sensor Electrical Connection | 4 Pin M12 Connector |
| Shielded / Unshielded | Shielded |
| Case Material | Stainless Steel |
| Proximity Sensor Operating Frequency | 2,000 Hz |
| Operating Temp. Range | -40 to 85 deg C |
| Description/Special Features | Output Short-Circuit Protection, Reverse Polarity, Surge Suppression |
| IP Rating | 67, 69K |
| Max. Current Load | 16 mA |
| Standards | CE Compliance, CSA Certified (CAS C22.2 UL60947-5-2-14), UL Listed (UL60947-5-2) |
| Package Quantity | 1 |
