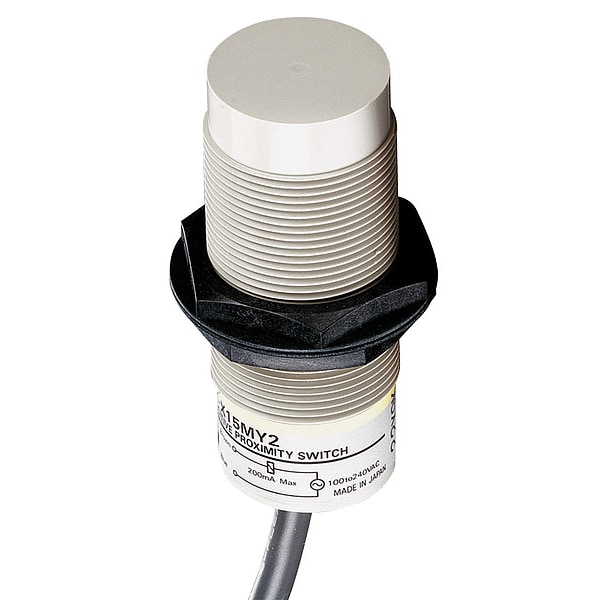

Sensor de proximidad, capacitivo, 12mm, con circuito normalmente cerrado (NC).
| Proximity Sensor Style | Cylindrical Proximity Sensor |
|---|---|
| Item | Cylindrical Proximity Sensor |
| Proximity Sensing Method | Capacitive |
| Proximity Sensor Power Requirement | 90 to 250 V AC |
| Proximity Sensor Output Circuit Type | 2 Wire |
| Output Mode | NC |
| Length | 41 mm |
| Proximity Sensor Diameter | 12 mm |

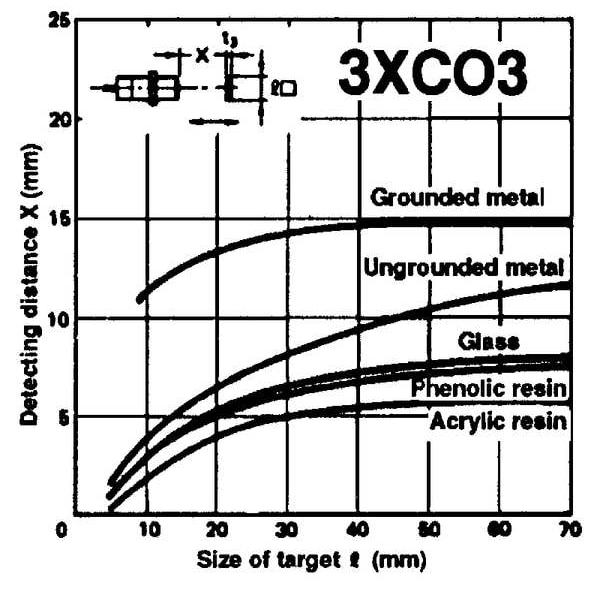

| Max. Detecting Distance | 4 mm |
| Proximity Sensor Electrical Connection | 2m Cable |
| Shielded / Unshielded | Unshielded |
| Basic Proximity Sensor Case Material | Plastic |
| Proximity Sensor Operating Frequency | 10 Hz |
| Case Material | Plastic |
| Description/Special Features | Red LED Output Indication, Surge Suppressor |
| NEMA Rating | 1, 12, 13, 4 |
| Operating Temp. Range | -13 to 158 deg F |
| IP Rating | 66 |
| Includes | Instruction Manual |
| Max. Current Load | 200 mA |
| Length (Straight Wireway) | 41 mm |
| Package Quantity | 1 |
