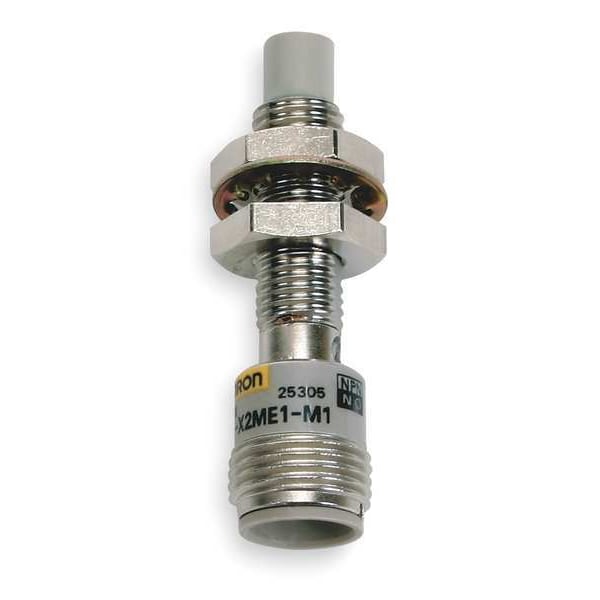

Sensor de proximidad, inductivo, 12mm, NO
| Item | Cylindrical Proximity Sensor |
|---|---|
| Proximity Sensor Style | Cylindrical Proximity Sensor |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Power Requirement | 24 to 240 V AC |
| Proximity Sensor Output Circuit Type | 2 Wire |
| Output Mode | NO |
| Length | 41 mm |
| Proximity Sensor Diameter | 12 mm |
| Max. Detecting Distance | 2 mm |
| Proximity Sensor Electrical Connection | 4 Pin M12 Connector |
| Basic Proximity Sensor Case Material | Metal |
| Shielded / Unshielded | Shielded |
| Case Material | Nickel Plated Brass |
| Proximity Sensor Operating Frequency | 25 Hz |
| Includes | Instruction Manual |
| IP Rating | 67 |
| Standards | CE Compliance |
| Operating Temp. Range | -40 to 185 deg F |
| NEMA Rating | 4X |
| Max. Current Load | 200 mA |
| Description/Special Features | LED Indication |
| Length (Straight Wireway) | 41 mm |
| Package Quantity | 1 |
