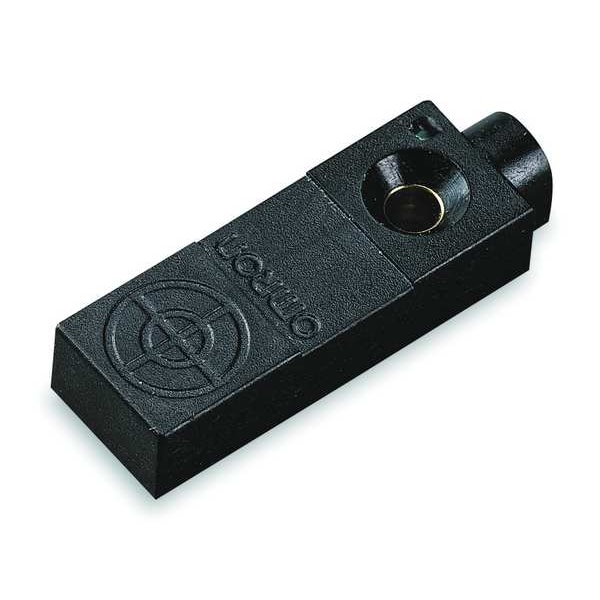

Sensor de proximidad rectangular, 10 a 30VDC, NC
| Proximity Sensor Style | Rectangular Proximity Sensor |
|---|---|
| Item | Rectangular Proximity Sensor |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Power Requirement | 10 to 30 V DC |
| Proximity Sensor Output Circuit Type | 3 Wire NPN |
| Output Mode | NO |
| Length | 27 mm |
| Width | 10 mm |
| Max. Detecting Distance | 3 mm |
| Proximity Sensor Electrical Connection | 2m Cable |
| Depth | 6 mm |
| Shielded / Unshielded | Unshielded |
| Basic Proximity Sensor Case Material | Plastic |
| Case Material | Plastic |
| Proximity Sensor Operating Frequency | 600 Hz |
| Standards | CE Compliance |
| Max. Current Load | 100 mA |
| Includes | Mounting bracket |
| Description/Special Features | Red Detection Indicator, Reverse Polarity Protection, Surge Suppressor |
| IP Rating | 67 |
| Operating Temp. Range | -13 to 158 deg F |
| Length (Straight Wireway) | 27 mm |
| Package Quantity | 1 |
