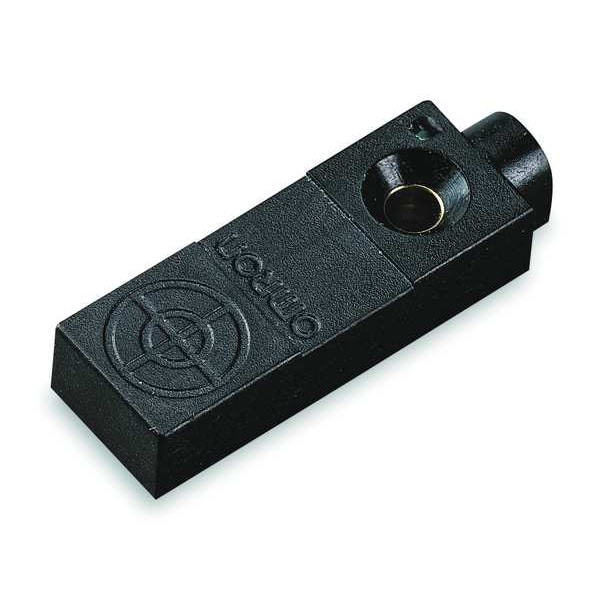

Sensor de proximidad rectangular, 10 a 30VDC, NC
| Item | Rectangular Proximity Sensor |
|---|---|
| Proximity Sensor Style | Rectangular Proximity Sensor |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Power Requirement | 10 to 30 V DC |
| Proximity Sensor Output Circuit Type | 3 Wire NPN |
| Output Mode | NO |
| Length | 52 mm |
| Width | 25 mm |
| Max. Detecting Distance | 5 mm |
| Proximity Sensor Electrical Connection | 2m Cable |
| Depth | 10 mm |
| Shielded / Unshielded | Shielded |
| Basic Proximity Sensor Case Material | Metal |
| Proximity Sensor Operating Frequency | 300 Hz |
| Case Material | Aluminum |
| Description/Special Features | Red Detection Indicator, Reverse Polarity Protection, Surge Suppressor |
| IP Rating | 67 |
| Max. Current Load | 200 mA |
| Includes | Instruction Manual |
| Operating Temp. Range | -13 to 158 deg F |
| Standards | CE Compliance |
| Length (Straight Wireway) | 52 mm |
| Package Quantity | 1 |
