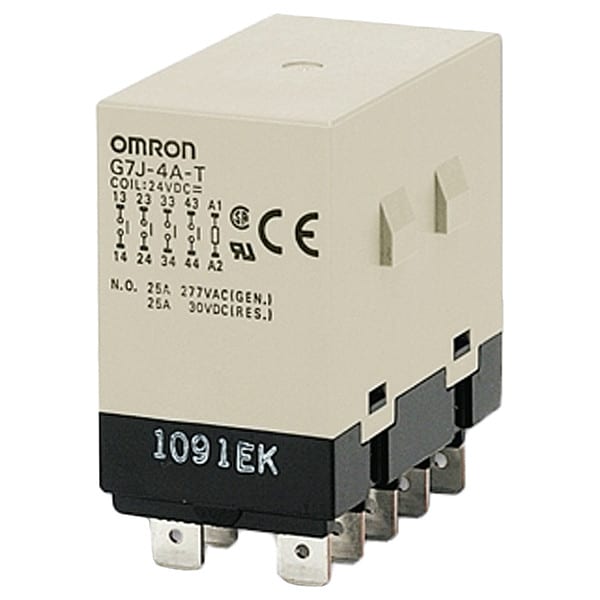

RELAY DPST-NO QC UBrkt 100120 significa "Relé de doble polo de un solo tiro - sin conexión rápida, con soporte en U 100120".
| Item | General Purpose Relays |
|---|---|
| Contact Material | Silver Tin Indium |
| Features | A High-Capacity, High-Dielectric-Strength Relay, Is Equipped with a Double-Break Mechanism and a Test Button (Excluding -P Models) |
| Standards | RoHS |
| Contact Form | DPST-NO |
| Number of Pins | 6 |
| Electrical Connection | Quick-Connect |
| Status Indicator | No Indicator |
| Series | G7L |
| For Use With | Momentary Voltage Drops |
| Body Width | 2.7 in |
| Power Consumption | 2.5 VA |
| Flat Pin Width | 1/4 in |
| Mechanical Operating Durability | 1,000,000 |
| Base Shape | Square |
| Compatible with Manufacturer Model Number | P7LF-06, P7LF-D, R99-07G5D |
| Resistance Properties | Flame-Resistant |
| Weight | 3.17 oz |
| Minimum Switching Current | 25 A |
| Contact Rating (DC) | 100 mA @ 5V |
| Coil Voltage | 100/120V AC |
| Maximum Operating Temperature | 60 deg C |
| Maximum Switching Voltage | 250 V AC |
| Contact Rating (AC) | 25 A @ 240V |
| Frequency | 50/60 Hz |
| Horsepower @ 120V AC | 1 1/2 hp |
| Electrical Operating Durability | 100,000 |
| Insulation Resistance | 1,000 megaohm |
| Minimum Operating Temperature | -25 deg C |
| Body Height | 0.18 in |
| Response Time | 30 msec |
| Dielectric Strength | 2,000V AC, 50/60 Hz for 1 Minute Between Contacts of Different Poles (DPST-NO type), 2,000V AC, 50/60 Hz for 1 Minute Between Contacts of same Pole, 4,000V AC, min./5,000V AC Typical, 50/60 Hz for 1 Minute Between Coil and Contacts |
| Overall Depth | 1.85 in |
| Operating Current | 25 A |
| Coil Resistance | 5,260 ohms |
| Body Depth | 1.85 in |
| Current Rating | 17 mA, 20.4 mA |
| Package Quantity | 1 |
