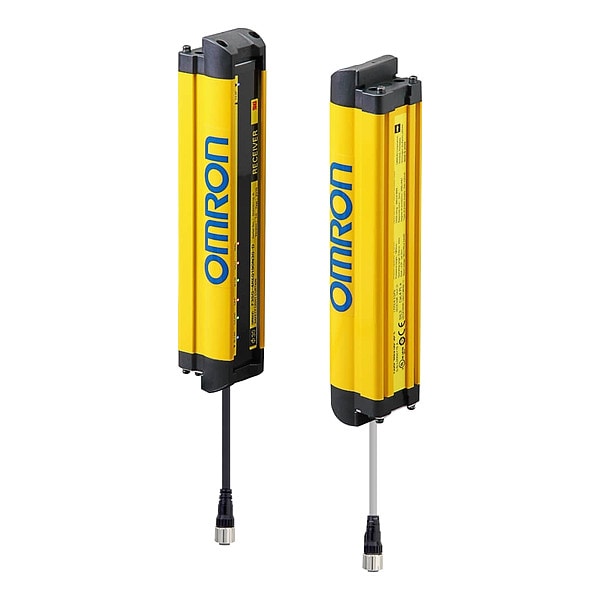

Cortina de seguridad lumínica
| Item | Saftey Light Curtain |
|---|---|
| Max. Sensing Distance | 32 ft |
| Input Voltage | 24V DC |
| Safety Output Ratings | 300 mA @ 24V DC |
| Color | Yellow |
| IP Rating | 65, 67 |
| Housing Material | Aluminum |
| NEMA Rating | IP67 |
| Width | 40 mm |
| Protected Height | 47.24 in |
| Number of Beams | 119 |
| Depth | 35 mm |
| Beam Spacing | 0.394 in |
| Cable Length | 0.3 m |
| Cable Connection Transmitter | 4 Pin, M12 |
| Overall Height | 1,200 mm |
| Response Time | 25 to 75 msec (Off to On); 5 to 15 msec (On to Off) |
| Light Source | 870nm IR LED |
| Includes | Quick Installation Manual; Safety Precautions; Standard Fixed Bracket; Troubleshooting Guide Sticker |
| Standards | CE Certified, EN ISO 13849-1:2015, IEC 60529, IEC 60664-1, IEC 61496-1, IEC 61508, IEC 61508-2, TUV, UL Listed |
| Cable Connection Receiver | 4 Pin, M12 |
| Operating Temp. Range | 14 to 131 deg F |
| Effective Aperture Angle | +/-2.5 deg @ 3 m |
| Package Quantity | 1 |
