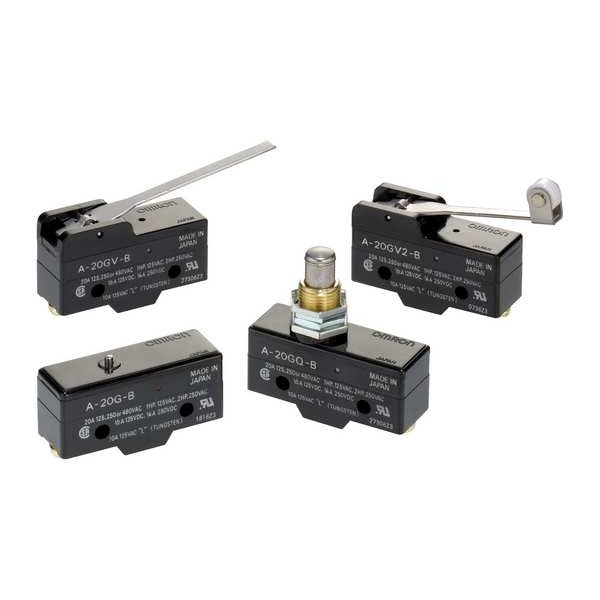

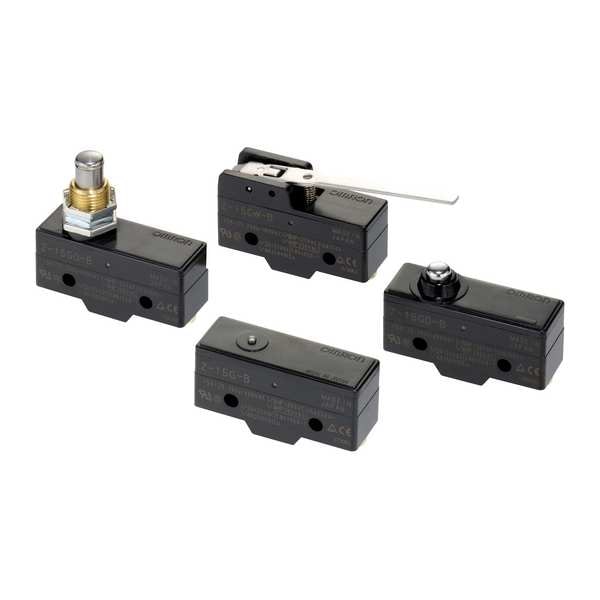

Interruptor de acción rápida, bisagra, accionador de palanca, SPDT, capacidad de contacto de 15 A @ 250 V CA
| Item | Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Lever, Hinge |
| AC Contact Rating - Snap Action Switch | 15 A @ 250 V |
| DC Contact Rating - Snap Action Switch | 15 A @ 14 V |
| Contact Form- Switches | SPDT |
| Lever Actuator Length - Snap Action Switch | 2-1/2 in |
| Height - Snap Action Switch | 1.16 in |
| Width - Snap Action Switch | 0.69 in |
| Depth - Snap Action Switch | 1.94 in |
| Operating Temp. Range | -25 Degrees to 80 Degrees C |
| AC Contact Rating | 15 A @ 250 V |
| Watertight - Snap Action Switch | No |
| Housing Material | Silver; Metal |
| Contact Form | SPDT |
| DC Contact Rating | 15 A @ 14 V |
| Mounting Dimension - Snap Action Switch | 1 in (Centers) |
| Series | Z |
| Release Force | 0.5 ozf |
| Standards | CSA, UL Listed |
| Max. Pretravel | 0.015 in |
| Electrical Connection - Snap Action Switch | Screw |
| Includes | Hinge Lever General purpose Snap action screw |
| Overtravel | 0.22 in |
| Electrical Connection | Screw |
| Operating Temperature - Maximum | 176 deg F |
| Center Mounting Hole Distance | 0.1 in |
| Differential Travel - Maximum | 0.05 in |
| Roller Width | Not Applicable |
| Operating Temperature - Minimum | -13 deg F |
| Overall Height | 1.16 in |
| Body Material | Plastic |
| Actuator Style | Hinge Lever |
| Mounting Hole Diameter | 4-3/16 in |
| Roller Diameter | Not Applicable |
| Roller Position | Not Applicable |
| Roller Adjustability | Not Applicable |
| Resistance Properties | Insulation Resistant, Shock Resistant, Vibration Resistant |
| Operating Force - Maximum | 0.69 N |
| Overall Depth | 1.94 in |
| Roller Material | Not Applicable |
| Operating Force - Minimum | 0.69 N |
| Overall Width | 0.69 in |
| Pretravel | 0.015 in |
| Lever Actuator Length | 2-1/2 in |
| Differential Travel - Minimum | Not Applicable |
| Package Quantity | 1 |
