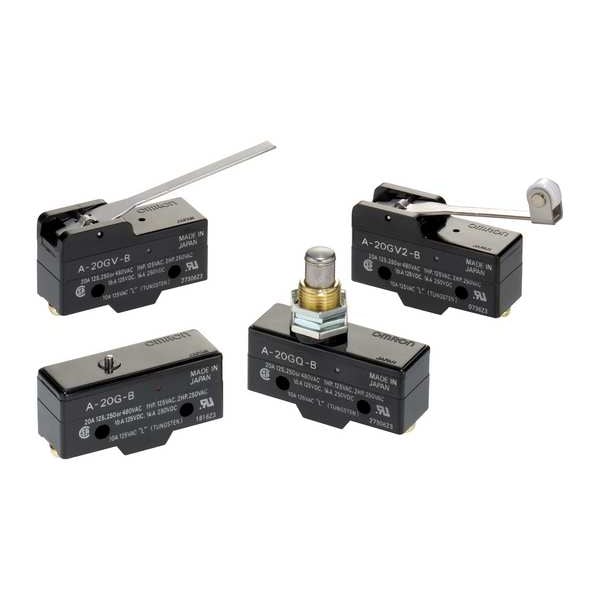

Interruptor de acción rápida, Pin, Actuador de pistón, SPDT, Capacidad de contacto de 20 A @ 250 V CA.
| Item | Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Plunger, Pin |
| AC Contact Rating - Snap Action Switch | 20 A @ 250 V |
| DC Contact Rating - Snap Action Switch | 20 A @ 14 V |
| Contact Form- Switches | SPDT |
| Lever Actuator Length - Snap Action Switch | Not Applicable |
| Height - Snap Action Switch | 1-1/2 in |
| Width - Snap Action Switch | 2 in |
| Depth - Snap Action Switch | 0.8 in |
| Max. Pretravel | 0.0512 in |
| Electrical Connection - Snap Action Switch | Screw |
| Includes | Rated up to Current 20 A, M4 Screw Terminal |
| Contact Form | SPDT |
| Housing Material | Silver; Metal |
| Mounting Dimension - Snap Action Switch | 1 in (Centers) |
| Series | A |
| Operating Temp. Range | -25 Degrees to 80 Degrees C |
| Release Force | 10.04 ozf |
| DC Contact Rating | 0.03 A @ 250 V, 0.05 A @ 125 V, 0.25 A @ 250 V, 0.5 A @ 125 V, 1.5 A @ 14 V, 1.5 A @ 30 V, 1.5 A @ 8 V, 12.5 A @ 14 V, 12.5 A @ 8 V, 15 A @ 14 V, 20 A @ 14 V, 20 A @ 8 V, 3 A @ 14 V, 3 A @ 30 V, 3 A @ 8 V, 5 A @ 30 V, 6 A @ 30 V |
| Watertight - Snap Action Switch | No |
| Operating Force - Maximum | 6.13 N |
| Lever Actuator Length | Not Applicable |
| Overall Depth | 0.8 in |
| Mounting Hole Diameter | 4-3/16 in |
| Center Mounting Hole Distance | 0.1 in |
| Overtravel | 0.01 in |
| Electrical Connection | Screw |
| Roller Width | Not Applicable |
| Overall Height | 1-1/2 in |
| Actuator Style | Plunger |
| Body Material | Plastic |
| Differential Travel - Maximum | 0.0079 in |
| Roller Material | Not Applicable |
| Operating Force - Minimum | 3.92 N |
| Roller Diameter | Not Applicable |
| Pretravel | 0.051 in |
| Roller Position | Not Applicable |
| Resistance Properties | Insulation Resistant |
| Operating Temperature - Minimum | -13 deg F |
| Differential Travel - Minimum | Not Applicable |
| Operating Temperature - Maximum | 176 deg F |
| Overall Width | 2 in |
| Roller Adjustability | Not Applicable |
| Package Quantity | 1 |
