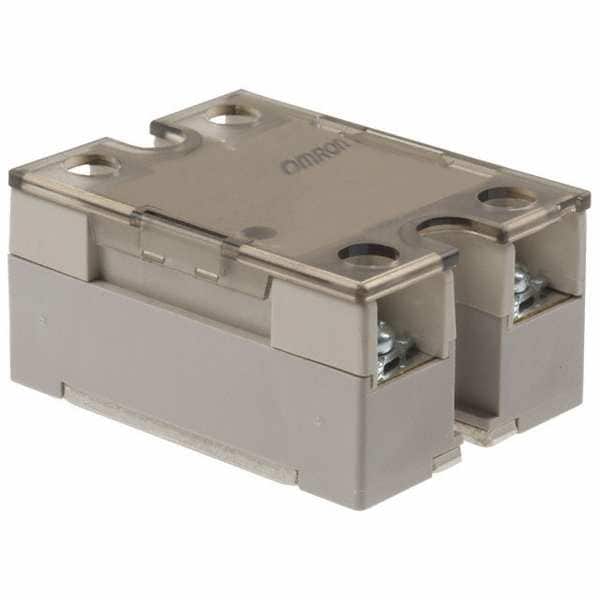

Relevador de estado sólido, Entrada de 5-24VDC, Salida de 24-240VAC.
| Item - Relay | Solid State Relay |
|---|---|
| Input or Control Voltage | 5 to 24 V DC |
| Output or Controlled Voltage Range | 24 to 240 V AC |
| Max. Output Amps w/Heat Sink | 20 A |
| Heat Sink | Not Included |
| Switch Type | Phototriac |
| Contact Form - Relay | SPST-NO |
| Relay Turns On At | Instantaneous, Random |
| Input Power Consumption (Burden) | 0.2 to 0.5W |
| Mounting - Relay | Surface |
| Input Voltage | 5 to 24V DC |
| Item | Solid State Relay |
| Standards | CE Certified, CSA Certified, TUV Certified, UL Listed |
| Finger Safe | Yes |
| Maximum Operating Temperature | 176 deg F |
| Minimum Operating Temperature | -22 deg F |
| Weight | 2.12 oz |
| Current Type | DC |
| Electrical Connection | Screw Clamp |
| Output Voltage Range | 24 to 240 V AC |
| Mounting Style | Surface |
| Status Indicator | LED Indicator |
| Voltage Type | AC Output |
| Body Depth | 0.98 in |
| Overall Depth | 1.06 in |
| Dielectric Strength | 2,500V AC |
| Body Height | 2.28 in |
| Output Switching Mode | Zero Crossing |
| Maximum Output Current with Heat Sink | 20 A |
| Switch Configuration | Form A |
| Series | G3NA Series |
| Switch Component Type | Phototriac |
| Input Current | 17.4 to 35 A |
| Insulation Resistance | 100 megaohm |
| Maximum Output Current without Heat Sink | 35 A |
| Electrical Phase | Single |
| Body Width | 1.69 in |
| Drop Out Voltage | 1.6 V DC |
| Package Quantity | 1 |
