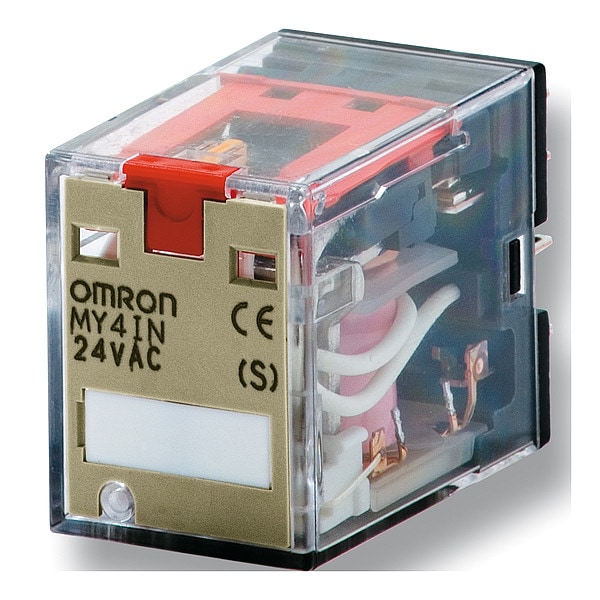

| Item | General Purpose Relays |
|---|---|
| Contact Material | Silver and Gold Plated |
| Features | Full Range of Sockets Covering Mounting by Screw, Box Clamp and Screw-Less Clamp Method, Screw-Less Clamp Terminal Sockets Available, Transparent Housing |
| Standards | RoHS |
| Status Indicator | LED Indicator |
| Contact Form | 4PDT |
| Electrical Connection | Plug-In |
| Number of Pins | 14 |
| Insulation Resistance | 100 megaohm |
| Base Shape | Square |
| Dielectric Strength | 1,000V AC, 50/60 Hz for 1 min Between Coil and Contacts, Between Contacts of Different Polarity |
| Maximum Operating Temperature | 70 deg C |
| Minimum Switching Current | 5 A |
| Maximum Switching Voltage | 125 V DC, 250 V AC |
| Electrical Operating Durability | 100,000 |
| Mechanical Operating Durability | 50,000,000 |
| Power Consumption | 1.1 VA |
| Coil Voltage | 110/120V AC |
| Weight | 50 g |
| Horsepower @ 240V AC | 0.1667 HP |
| Horsepower @ 120V AC | 1/10 hp |
| Response Time | 20 msec |
| Frequency | 50/60 Hz |
| Body Depth | 1.41 in |
| Flat Pin Width | 2.6 mm |
| Contact Rating (DC) | 1.5 A to 30 V, 3 A to 30 V |
| Series | MY Series |
| Mounting Style | Plug-In |
| Push-To-Test Method | Lockable |
| Minimum Operating Temperature | -55 deg C |
| Coil Resistance | 4,430 ohms |
| Current Rating | 9.2 mA, 10.8 mA |
| Resistance Properties | Insulation-Resistant, Shock-Resistant, Vibration-Resistant |
| Overall Depth | 1.66 in |
| Contact Rating (AC) | 0.8 A to 250 V, 3 A to 250 V |
| Body Width | 0.84 in |
| Body Height | 1.1 in |
| Package Quantity | 1 |
