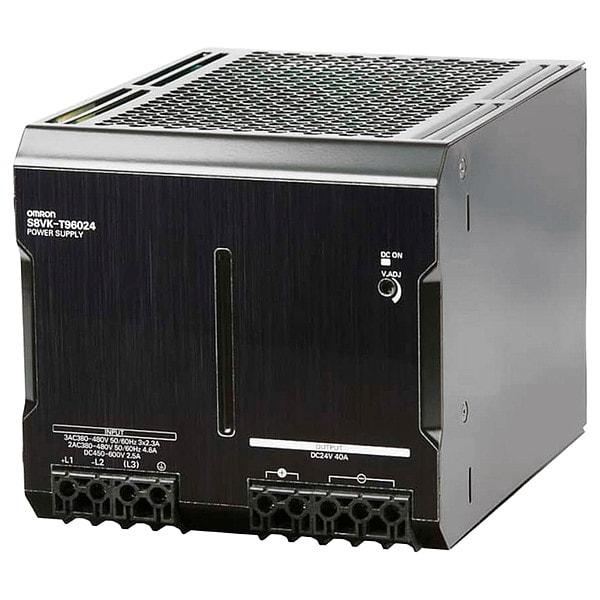

Switching Power Supply, 380/480V AC, 24V DC, 960W, 40A, DIN Rail
| Item | Switching Power Supply |
|---|---|
| Input Voltage | 380/480V AC |
| Output Voltage | 24V DC |
| Power Rating | 960 W |
| Output Amps | 40 A |
| Mounting | DIN Rail |
| Phase - Electrical | Three |
| Style | Switching |
| Height | 125 mm |
| Width | 135 mm |
| Depth | 150 mm |
| Hz | 50/60 Hz |
| Features | Power Boost Function at 120%, Three Year Warranty |
| Output Noise | 60 mV |
| IP Rating | IP20 |
| Hold Up Time | 35 msec |
| Standards | EN/IEC 60529 |
| Status Indicator | Green LED |
| Series | S8VK-T |
| Operating Temp. Range | -40 to 70 deg C |
| Wire Connection Type | Terminals |
| Wire Size - Maximum | 6 AWG |
| Special Features | LED Diagnostic Indicators, Overload Protection, Overvoltage Protection, Parallel Capability, Series Operation |
| Operating Temperature - Minimum | -40 deg F |
| Input Frequency - Nominal | 50/60 Hz |
| Current - Inrush | 6 A |
| Current - Peak | 48 A |
| Current - Output | 40 A |
| Operating Temperature - Maximum | 158 deg F |
| Manufacturer Warranty | 3 yr |
| Start Up Time - Maximum | 500 msec |
| Wire Size - Minimum | 16 AWG |
| Mean Time Between Failures (MTBF) | 135,000 hr |
| Output Power - Rated | 960 W |
| Package Quantity | 1 |
