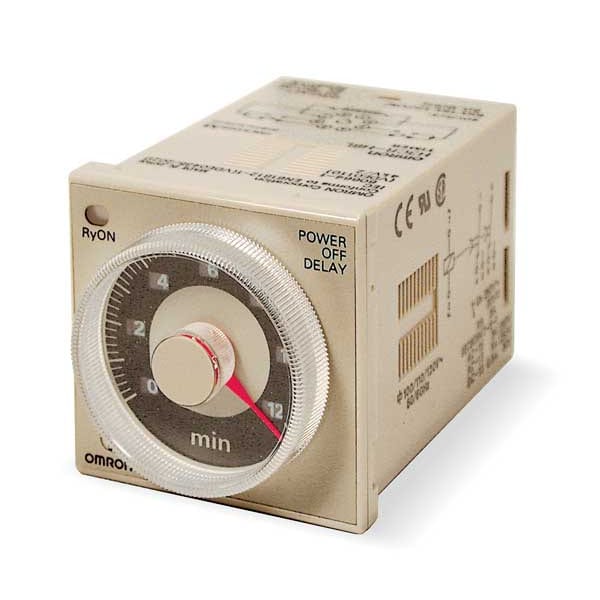

Relé de retardo de tiempo, 120VAC, 5A, DPDT.
| Item - Relay | Single Function Timing Relay |
|---|---|
| Function - Timing Relay | Power Off Delay |
| Coil Volts | 120V AC |
| AC Contact Rating - Relay | 5A @ 250V |
| Base Type - Plug In Relay | Octal |
| Number of Pins - Relay | 8 |
| Adjustment Method - Timer | Knob |
| Mounting - Relay | Plug In, Through Panel |
| Contact Form - Relay | DPDT |
| Min. Time Setting - Timer | 3 sec |
| Power Consumption - Relay | 5 VA |
| Max. Time Setting - Timer | 12 min |
| Coil Rating | 5 VA |
| Body Depth - Relay | 1.89 in |
| Contact Amp Rating (Resistive) | 5 A |
| Hz | 50/60 |
| Overall Height - Relay | 3.58 in |
| Body Width - Relay | 1.89 in |
| Socket | 1EGP3, 1EGP5, 5X852 |
| Body Height - Relay | 2.82 in |
| Base Type | Octal |
| Function | Power Off Delay |
| Hz - Electrical | 50 Hz, 60 Hz |
| Item | Single Function Time Delay Relay |
| Max. Time Setting | 12 min |
| Standards | CCC, CE Certified, CSA Certified, EN 61812-1, LR, NK, UL Listed, UR |
| Number of Functions | 24 |
| Status Indicator | None |
| Operating Functions | 10 |
| Mounting | plug In, Panel |
| Contact Form | DPDT |
| Pins | 8 |
| Electrical Connection | Socket |
| Contact Material | Silver Alloy |
| Min. Time Setting | 3 sec |
| Input Voltage | 100 to 120V AC |
| Adjustment Method | Dial |
| Minimum Operating Temperature | 14 deg F |
| Weight | 4.23 oz |
| Mounting Style | Surface |
| Minimum Time Setting | 0.05 sec |
| Reset Method | Reset |
| Base Shape | Square |
| Mechanical Operating Durability | 20,000,000 |
| Body Depth | 2.51 in |
| Electrical Operating Durability | 100,000 |
| Current Rating | 5 A |
| Overall Depth | 3.07 in |
| Body Height | 1.89 in |
| Delay Function | Power Off Delay |
| Contact Rating (AC) | 5 A @ 250 V |
| Frequency | 50/60 Hz |
| Sealing | Enclosed |
| Relay Operation | Solid State |
| Maximum Operating Temperature | 131 deg F |
| Body Width | 1.89 in |
| Number of Pins | 8 |
| Compatible with Manufacturer Model Number | P2CF-08, P2CF-08-E, P3G-08, PF085A, PL08, PL08-Q, PLE08-0 |
| Operating Time Accuracy | +/-0.2% FS max |
| Power Consumption | 5 VA |
| Coil Voltage | 120V AC |
| IP Rating | IP40 |
| Maximum Time Setting | 12 min |
| Number of Delay Functions | 1 |
| Package Quantity | 1 |
