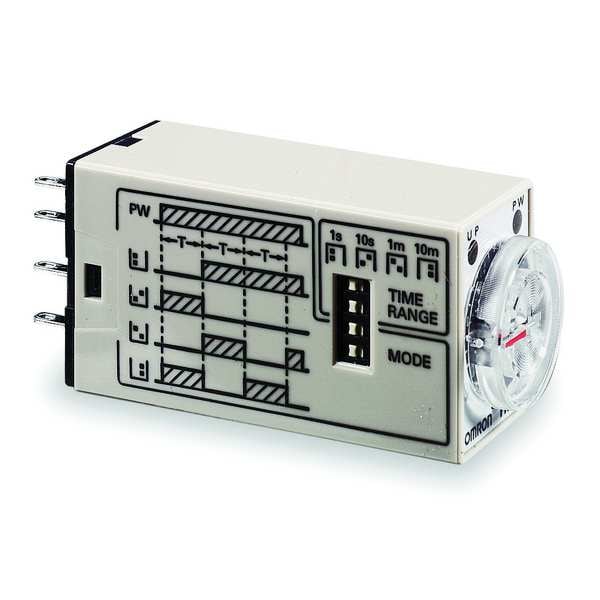

Relé de retardo de tiempo, 200 a 240VCA, 5A, DPDT
| Item - Relay | Relay |
|---|---|
| Function - Timing Relay | Interval Delay, On Delay, Repeat Cycle Equal Off/On Times |
| Coil Volts | 200 to 240V AC |
| AC Contact Rating - Relay | 5A @ 250V |
| Base Type - Plug In Relay | Square |
| Number of Pins - Relay | 8 |
| Adjustment Method - Timer | Dip Switch, Knob |
| Mounting - Relay | Plug In, Through Panel |
| Contact Form - Relay | DPDT |
| Min. Time Setting - Timer | 0.1 sec |
| Power Consumption - Relay | 2 VA |
| Max. Time Setting - Timer | 10 min |

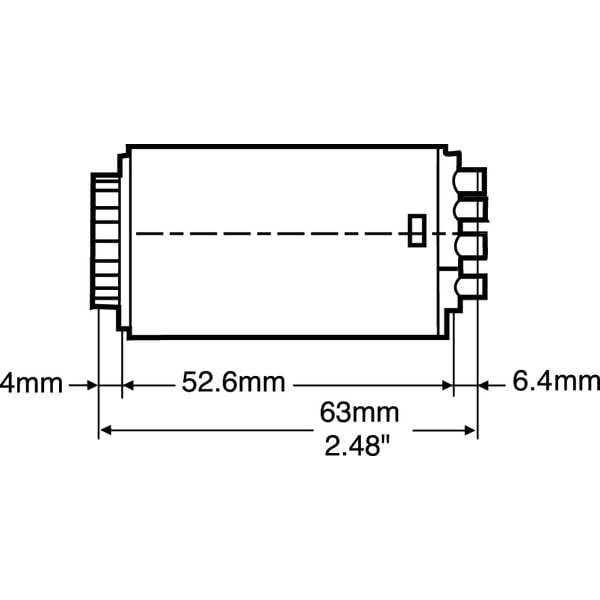

| Overall Height - Relay | 2.48 in |
| Number of Functions | 3 |
| Hz - Electrical | 50 Hz, 60 Hz |
| Contact Form | DPDT |
| Contact Material | Silver Alloy |

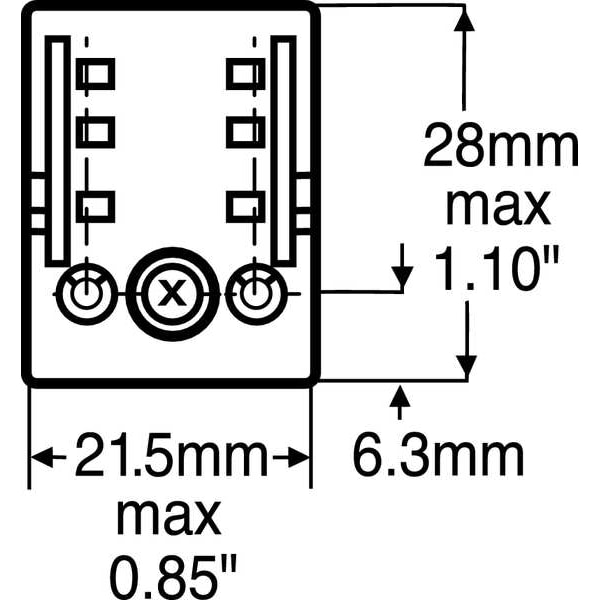

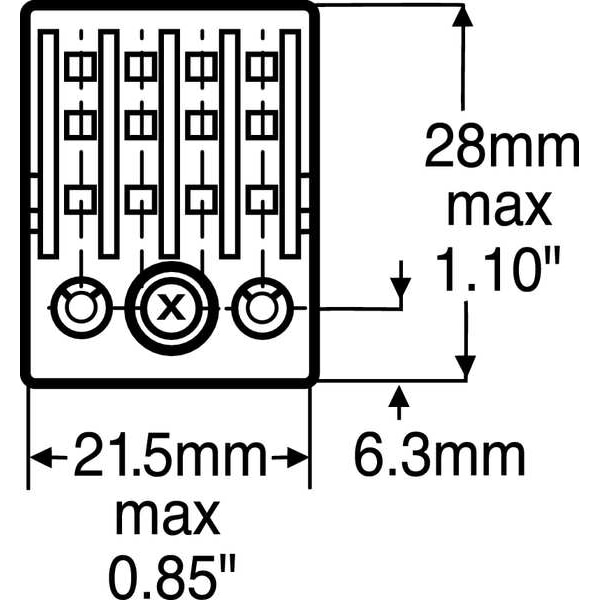

| Body Depth - Relay | 1.1 in |
| Electrical Connection | Socket |
| Body Width - Relay | 0.85 in |
| Body Height - Relay | 2.07 in |
| Socket Code | A |
| Item | Multi-Function Time Delay Relay |
| Status Indicator | None |
| Socket | 4KN18 |
| Input Voltage | 200 to 230V AC |
| Adjustment Method | Dip Switch, Dial |
| Standards | CCC, CE Certified, CSA Certified, EN 61812-1, IEC 60664-1, LR, UL Listed, UR |
| Minimum Time Setting | 0.1 sec |
| Sealing | Enclosed |
| Maximum Time Setting | 10 min |
| Number of Pins | 8 |
| Flat Pin Width | 0.498 in |
| IP Rating | IP40 |
| Body Height | 0.04 in |
| Overall Depth | 2.48 in |
| Maximum Operating Temperature | 122 deg F |
| Electrical Operating Durability | 500,000 |
| Base Shape | Square |
| Mounting Style | Plug-In |
| Minimum Operating Temperature | 14 deg F |
| Reset Method | Reset |
| Operating Time Accuracy | +/-1% FS max |
| Current Rating | 5 A |
| Relay Operation | Solid State |
| Compatible with Manufacturer Model Number | PY08, PYF08A, PYF08A-E, PYF08F |
| Body Depth | 2.07 in |
| Weight | 1.76 oz |
| Delay Function | Flicker Off Start, Flicker On Start, Interval, On Delay |
| Frequency | 50/60 Hz |
| Coil Voltage | 230V AC |
| Number of Delay Functions | 4 |
| Body Width | 0.85 in |
| Contact Rating (AC) | 5 A @ 250 V |
| Power Consumption | 1.8 W, 2.2 VA |
| Mechanical Operating Durability | 10,000,000 |
| Package Quantity | 1 |
