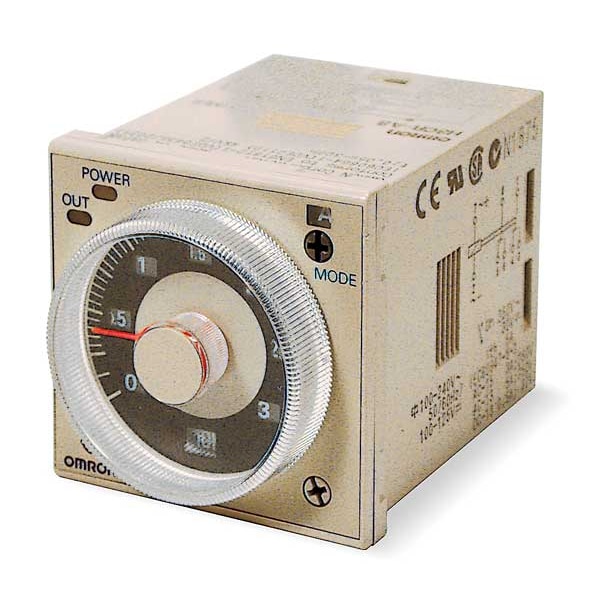

Relé de retardo de tiempo, 24 a 48VCA/12 a 48VCD.
| Item - Relay | Relay |
|---|---|
| Function - Timing Relay | Flicker Off Start, Flicker On Start, Interval, On Delay, One Shot |
| Coil Volts | 24 to 48V AC/12 to 48V DC |
| AC Contact Rating - Relay | 5A @ 240V |
| DC Contact Rating - Relay | 5 A @ 30 V |
| Base Type - Plug In Relay | Octal |
| Number of Pins - Relay | 8 |
| Mounting - Relay | Plug In, Through Panel |
| Adjustment Method - Timer | Knob |
| Min. Time Setting - Timer | 0.05 sec |
| Contact Form - Relay | DPDT |
| Max. Time Setting - Timer | 12 days 12 hr |
| Power Consumption - Relay | 3 VA |
| Electrical Connection | Socket |
| Body Height - Relay | 2.65 in |
| Body Depth - Relay | 1.89 in |
| Socket | 1EGP3, 1EGP5, 5X852 |
| Overall Height - Relay | 3.21 in |
| Contact Form | DPDT |
| Status Indicator | None |
| Item | Multi-Function Time Delay Relay |
| Standards | CCC, CE Certified, CSA Certified, EN 61812-1, LR, NK, UL Listed, UR |
| Body Width - Relay | 1.89 in |
| Number of Functions | 3 |
| Hz - Electrical | 50 Hz, 60 Hz |
| Contact Material | Silver Alloy |
| Adjustment Method | Dial |
| Input Voltage | 12 to 48V DC, 24 to 48V AC |
| Mechanical Operating Durability | 20,000,000 |
| Electrical Operating Durability | 100,000 |
| Body Depth | 2.06 in |
| Contact Rating (AC) | 5 A @ 240 V |
| Sealing | Enclosed |
| Coil Voltage | 48V DC |
| Number of Delay Functions | 8 |
| Base Shape | Square |
| Relay Operation | Solid State |
| IP Rating | IP40 |
| Overall Depth | 2.62 in |
| Minimum Time Setting | 0.05 sec |
| Contact Rating (DC) | 5 A @ 30 V |
| Body Width | 1.89 in |
| Reset Method | Reset |
| Operating Time Accuracy | +/-0.2% FS max |
| Maximum Time Setting | 300 hr |
| Current Rating | 5 A |
| Power Consumption | 3 VA |
| Minimum Operating Temperature | 14 deg F |
| Compatible with Manufacturer Model Number | P2CF-08, P2CF-08-E, P3G-08, PF085A, PL08, PL08-Q, PLE08-0 |
| Maximum Operating Temperature | 131 deg F |
| Weight | 3.17 oz |
| Frequency | 50/60 Hz |
| Body Height | 1.89 in |
| Mounting Style | Surface |
| Number of Pins | 8 |
| Delay Function | Flicker Off Start, Flicker On Start, Interval, On Delay, One Shot, Signal Off Delay, Signal On/Off Delay |
| Package Quantity | 1 |
