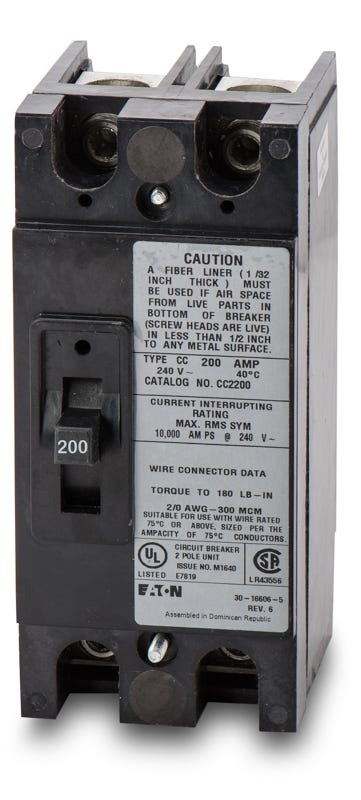

The Cutler Hammer CC2200 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 200 Amps and a voltage rating of 240VAC. It has an interrupting rating of 10kAIC at 240V. The CC2200 has a feed-thru connection type and includes long time and instantaneous trip functions. * ORIGINAL CC2200 BREAKER *
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | CC |
| Amperage | 200 |
| Voltage | 240VAC |
| Poles | 2 |
| Phase | 1 |
| Approval | UL, CSA |
| Interrupting Rating | 10kAIC at 240V |
| Frame Type | CC |
| Connection Type | Feed-Thru |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Line and Load Side Lug |
| Temperature Rating | 40 °C |
| Mpn | CC2200 |
| Upc | 782113266596 |
| Gtin | 782113266596 |
