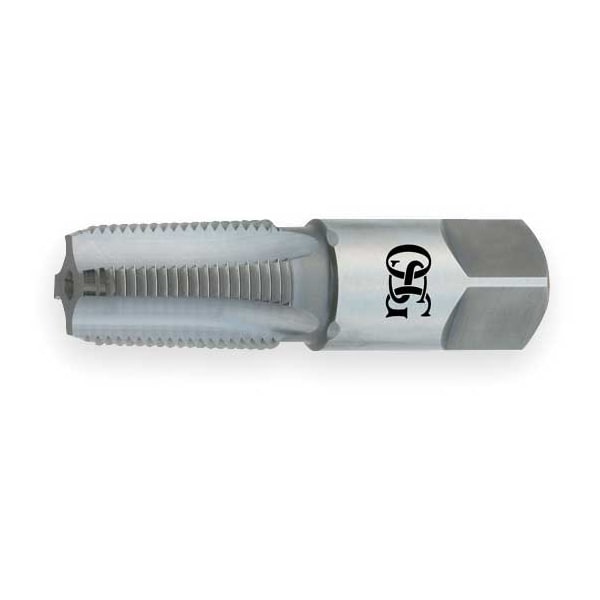

3/8"-18, Taper, 4 Flutes, NPT
| Item | Pipe Tap |
|---|---|
| Tap Thread Size | 3/8"-18 |
| Tap Chamfer | Taper |
| Number of Flutes | 4 |
| Tap Thread Type | NPT |
| Tap Finish | Bright |
| Standards | ANSI |
| Tap Style | Pipe |
| Tap Dimension Type | Pipe |
| Thread Length | 1-1/16 in |
| Tap Size | 3/8" |
| List Number | 118 |
| Overall Length | 2-9/16 in |
| Tap Material | High Speed Steel |
| Pitch Diameter Limit | Not Rated |
| Number of Pieces | 1 |
| Thread Direction | Right Hand |
| Shank Dia. | 0.531 in |
| Tap Grouping | Tap |
| Cutting Direction - Machining | Right Hand |
| Series | 118 |
| Helix Angle | 0 deg |
| Thread Standard | NPTF |
| Threads per Inch | 18 |
| Extended Neck | Yes |
| Spiral Direction | Neutral |
| 75% Thread Drill Size | 9/16 in |
| Thread Size | 3/8"-18 |
| Tap Shank Standard | ANSI |
| Max. Projection | 0.454 in |
| Coolant Fed | Non-Coolant Through |
| Secondary Material Application ISO Code | K, N, P |
| Material Grade - Machining | 118 |
| Primary Material Application ISO Code | P, N, K, M, H, O, S |
| Measurement System | Fractional Inch |
| Primary Material Application | All Materials |
| Secondary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| Drill Bit Size | 9/16 in |
| Shank Length | 1-17/64 in |
| Square Size | 0.531 in |
| Tap Length Standard | ANSI |
| Size | 3/8" |
| Package Quantity | 1 |
