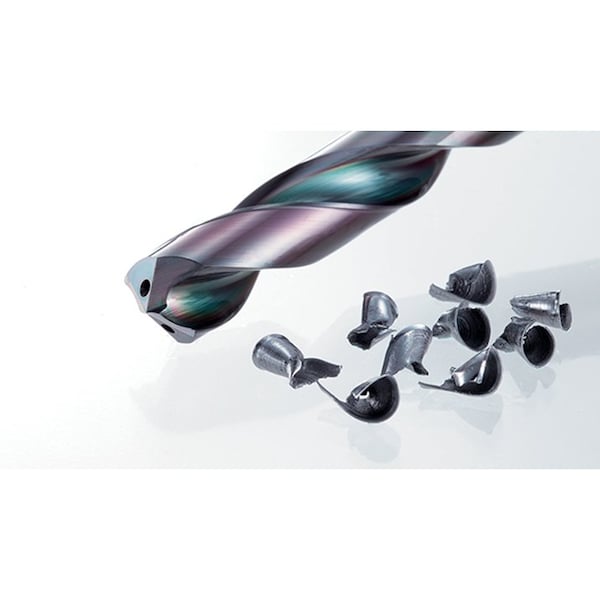

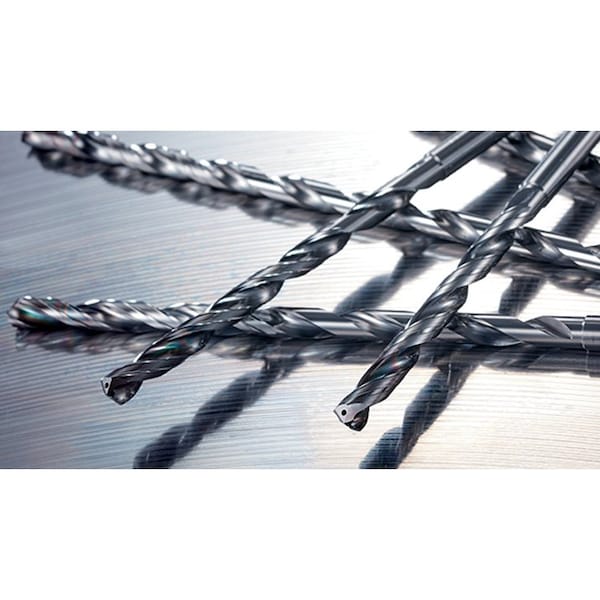

8.10mm Carbide TiN 140 Deg. Jobber Length Drill Bit
| Item | Jobber Length Drill Bit |
|---|---|
| Overall Length | 128 mm |
| Drill Bit Point Angle | 140 Degrees |
| Drill Bit Size | 8.1 mm |
| Number of Flutes | 2 |
| Shank Dia. | 9 mm |
| Material - Machining | Carbide |
| Cutting Direction | Right Hand |
| Finish - Machining | EgiAs |
| Shank Type - Machining | Straight |
| Flute Length | 65 mm |
| Drill Bit Dimension Type | Metric |
| List Number | 6510 |
| Decimal Equivalent | 0.3189 |
| Flute Type | Spiral |
| Depth:Dia. Ratio | 5 xD |
| Drill Bit Grouping | Drill Bit |
| Application | For Aluminum : 6061, 7071, Aluminum : Casting, Cast Iron, Low Carbon Steel : 1010, 1018, Medium Carbon Steel : 1035, 1045, High Carbon Steel : 1065, Alloy Steels : 4140, 4340, Die Steels : 20 HrC, Stainless Steels : 300, Stainless Steels : 400, Stainless Steels : 17-4PH, Nickel Alloy: Inconel, Titanium: 6Al4V, Hardened Steels : 35 HrC, Hardened Steels : 35-45 HrC, Hardened Steels : 45-50 HrC |
| Standards | Not Rated |
| Coolant Fed | Coolant Through |
| Helix Angle | 30 deg |
| Shank Length | 63 mm |
| Primary Material Application | Cast Iron, Hardened Steel, Steel, Titanium, Tool and Die Steel |
| Primary Material Application ISO Code | P, K, S, H |
| Measurement System | Metric |
| Drill Bit Point Type | X Thinning Point |
| Series | 6510 |
| Sheeter Drill | No |
| Drill Diameter Tolerance | +0.000/-0.022 mm |
| Secondary Material Application | Aluminum, Nickel, Stainless Steel |
| Number of Coolant Holes | 2 |
| Maximum Drilling Depth | 65 mm |
| Secondary Material Application ISO Code | M, S, N |
| Drill Length Class | Jobber Length |
| Material Grade - Machining | High Performance |
| Package Quantity | 1 |
