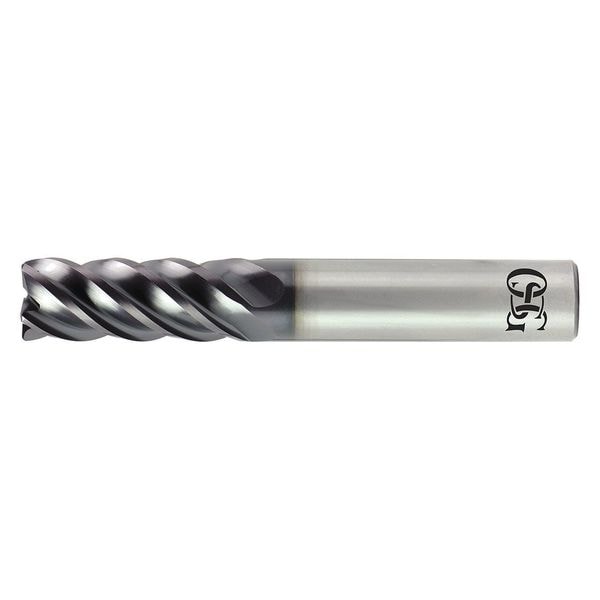

Carbide End Mill, 1 in. dia., 1-1/2 in Cut
| Measurement System | Fractional Inch |
|---|---|
| Milling Diameter | 1 in |
| Overall Length | 4 in |
| Number of Flutes | 5 |
| End Mill Style | Corner Radius |
| Finish | TiAlN |
| Length of Cut | 1-1/2 in |
| End Mill Cutting Type | Center Cutting |
| Cutting Direction | Right Hand |
| Shank Dia. | 1 in |
| Cast Iron (K) Compatibility | Yes |
| Helix Angle | Variable |
| Super Alloy (S) Compatibility | No |
| End Mill Material | Carbide |
| Stainless (M) Compatibility | Yes |
| Milling Dia. | 1 in |
| List Number | 2055 |
| Steel (P) Compatibility | Yes |
| End Mill Application | Finishing, Roughing |
| Item | Corner Radius End Mill |
| Non Ferrous (N) Compatibility | No |
| Corner Radius | 0.12 in |
| Grade | General Purpose |
| Single End/Double End | Single End |
| Hardened (H) Compatibility | No |
| Dimension Type | Fractional Inch |
| Shank Type | End Mill |
| Series | EXOPRO UVX-Ni |
| Cutting Direction - Machining | Right Hand |
| Finish - Machining | EXO |
| Shank Type - Machining | Weldon Flat |
| Drilling Tool Configuration | Individual |
| Material - Machining | Carbide |
| Material Grade - Machining | General Purpose |
| Primary Material Application | Nickel |
| Primary Material Application ISO Code | S |
| Package Quantity | 1 |
